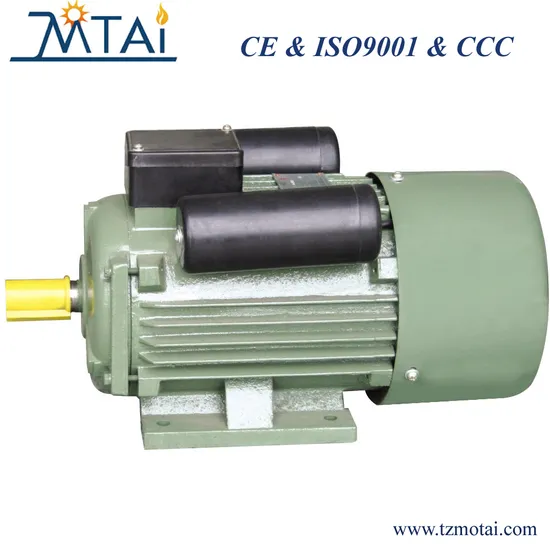

YC Series Single Phase Capacitor Start AC Electric Motor with Aluminum Casing
| US$31.00-200.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
YC63~YC160
Number of Stator
Single-Phase
Species
2, 4, 6p
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
2, 4, 6p
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, CE
Brand
TZMOTAI
Voltage
110V, 220V, 230V, 240V
Frequency
50Hz
Mount
B3, B5, B35, B14, B34, V1
Insulation
F Class
Power Range
0.18kw~355kw
Protection
IP55
Color Painting
as Per Request
Terminal Box Cover
Plastic or Metal
Core Wire
Copper Wire
Efficiency
Ie1
Motor Housing
Cast Iron
Transport Package
Export-Standard Package
Specification
High Torque
Trademark
TZMOTAI
Origin
Taizhou
HS Code
8501400000
Production Capacity
1000PCS/Day
Packaging & Delivery
Package Size
16.00cm * 21.50cm * 26.50cm
Package Gross Weight
20.000kg
Product Description
other product recommendationProduct Description YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.
The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.
Protection Class: IP44/IP54 Cooling Type: IC0141
Insulation Class:B or F Operation Type: S1
Rated Voltage: 115/230,220V Rated Frequency: 60 Hz(50Hz)
Shell material: casting iron and aluminium alloy (only used below 100)
| Technical Data (220V/50Hz) |
| Model | Power | Current (A) | Power Factor (cos¢) | Eff (%) | Speed (r/min) | locked torque Rated torque Tst/Tn | locked current Rated current Ist/In | Tmax/ Tn | |
| Hp | kW | ||||||||
| YC7112 | 1/4 | 0.18 | 1.89 | 0.72 | 60 | 2800 | 3.0 | 7 | 1.8 |
| YC7122 | 1/3 | 0.25 | 2.4 | 0.74 | 64 | 2800 | 3.0 | 7 | 1.8 |
| YC8012 | 1/2 | 0.37 | 3.4 | 0.77 | 65 | 2800 | 2.8 | 6.5 | 1.8 |
| YC8022 | 3/4 | 0.55 | 4.7 | 0.79 | 68 | 2800 | 2.8 | 6.5 | 1.8 |
| YC90S-2 | 1 | 0.75 | 6.1 | 0.8 | 70 | 2800 | 3.0 | 6.5 | 1.8 |
| YC90L-2 | 1.5 | 1.1 | 8.7 | 0.8 | 72 | 2800 | 2.5 | 7 | 1.8 |
| YC90L-2 | 2 | 1.5 | 11.4 | 0.81 | 74 | 2800 | 2.5 | 7 | 1.8 |
| YC100L-2 | 3 | 2.2 | 16.5 | 0.81 | 75 | 2800 | 2.2 | 7 | 1.8 |
| YC100L1-2 | 4 | 3 | 21.88 | 0.82 | 76 | 2800 | 2.2 | 6.8 | 1.8 |
| YC100L-2 | 5 | 3.7 | 26.64 | 0.82 | 77 | 2800 | 2.2 | 6.4 | 1.8 |
| YC112M-2 | 4 | 3 | 21.4 | 0.82 | 76 | 2800 | 2.2 | 7 | 1.8 |
| YC7114 | 1/6 | 0.12 | 1.88 | 0.58 | 50 | 1400 | 3.0 | 9 | 1.8 |
| YC7124 | 1/4 | 0.18 | 2.49 | 0.62 | 53 | 1400 | 2.8 | 7 | 1.8 |
| YC8014 | 1/3 | 0.25 | 3.11 | 0.63 | 58 | 1400 | 2.8 | 6 | 1.8 |
| YC8024 | 1/2 | 0.37 | 4.24 | 0.64 | 62 | 1400 | 2.5 | 6 | 1.8 |
| YC90S-4 | 3/4 | 0.55 | 5.5 | 0.69 | 66 | 1400 | 2.5 | 6 | 1.8 |
| YC90L-4 | 1 | 0.75 | 6.9 | 0.73 | 68 | 1400 | 2.5 | 6.5 | 1.8 |
| YC90L-4 | 1.5 | 1.1 | 9.6 | 0.74 | 71 | 1400 | 2.5 | 6.5 | 1.8 |
| YC100L-4 | 2 | 1.5 | 12.5 | 0.75 | 73 | 1400 | 2.5 | 6.5 | 1.8 |
| YC112M-4 | 3 | 2.2 | 17.8 | 0.76 | 74 | 1400 | 2.2 | 6.5 | 1.8 |
| YC132S-4 | 4 | 3 | 23.6 | 0.77 | 75 | 1400 | 2.1 | 6.5 | 1.8 |
| YC132S-4 | 5 | 3.7 | 28 | 0.79 | 76 | 1400 | 2.1 | 6.5 | 1.8 |
| YC132M-4 | 7.5 | 5.5 | 32.5 | 0.95 | 81 | 1400 | 2.1 | 6.5 | 1.8 |
OVERALL INSTALLATION DIMENSION:
| Frame | Installation dimensions | Dimensions | ||||||||||||||||||||||||||
| IMB3 | IMB14 IMB34 | IMB5 IMB35 | IMB3 | |||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | M | N | P | R | S | T | AB | AC | AD | AE | HD | L | ||
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 2.5 | 130 | 110 | 160 | - | 10 | 3.5 | 145 | 145 | 140 | 95 | 180 | 255 | |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 110 | 80 | 120 | 0 | M6 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 150 | 110 | 200 | 295 | |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 160 | 120 | 220 | 370 | |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 160 | 120 | 220 | 400 | |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | - | - | - | - | - | - | 215 | 180 | 250 | 0 | 15 | 4 | 205 | 200 | 180 | 130 | 260 | 430 | |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | - | - | - | - | - | - | 215 | 180 | 250 | 0 | 15 | 4 | 245 | 250 | 190 | 140 | 300 | 455 | |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | - | - | - | - | - | - | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 290 | 210 | 155 | 350 | 525 | |
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | - | - | - | - | - | - | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 290 | 210 | 155 | 350 | 525 | |
SINGLE PHASE MOTORS
FACTORY OUTLINED LOOKING:
PAINTING COLOD CODE:
ADVANTAGE:
Pre-sales service:
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
After-sales service:
•We respect your feed back after receive the motors.
•We provide 1years warranty after receipt of motors..
•We promise all spare parts available in lifetime use.
•We loge your complain within 24 hours.
