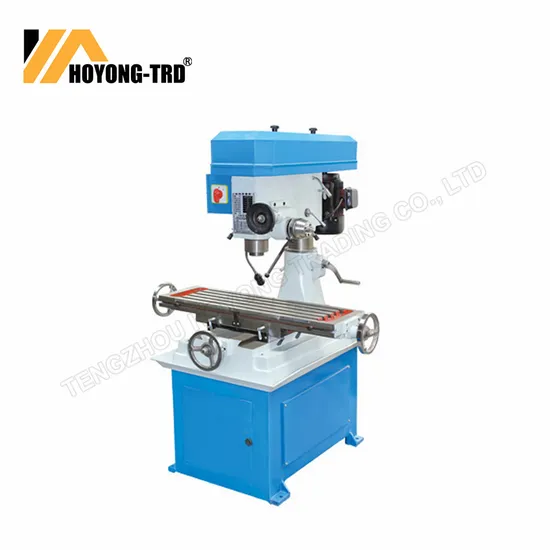

Small Vertical Drilling Milling Machine for Sale Zxtm40 Zx50c Zx45 Zx32g Zx32g-1
| US$700.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZXTM40 ZX50C ZX45 ZX32G ZX32G-1
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
40mm
Table Size
800X240mm
Spindle Traver
120mm
Transport Package
Plywood Case
Specification
185kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description
SMALL DRILLING AND MILLING MACHINE FEATURES:
1.Belt-driven and round column.
2. Milling, drilling, tapping, boring and reaming.
3. Micro feed precision.
4. Strong rigidity, powerful cutting and precise positioning.
SPECIFICATIONS:
| SPECIFICATION | UNIT | ZXTM40C |
| Drilling capacity | mm | 40 |
| End milling capacity | mm | 100 |
| Vertical milling capacity | mm | 20 |
| Boring capacity | mm | 120 |
| Tapping capacity | mm | M16 |
| Distance between spindle nose and worktable | mm | 120-550 |
| Range of spindle speed | r.p.m | 168-3160 |
| Spindle travel | mm | 120 |
| Table size | mm | 800 x 240 |
| Table travel | mm | 400 x 250 |
| Overall dimensions | mm | 1100 x 1050 x 1330 |
| Motor power | kw | 1.5 |
| N.W/G.W | kg | 410/460 |
