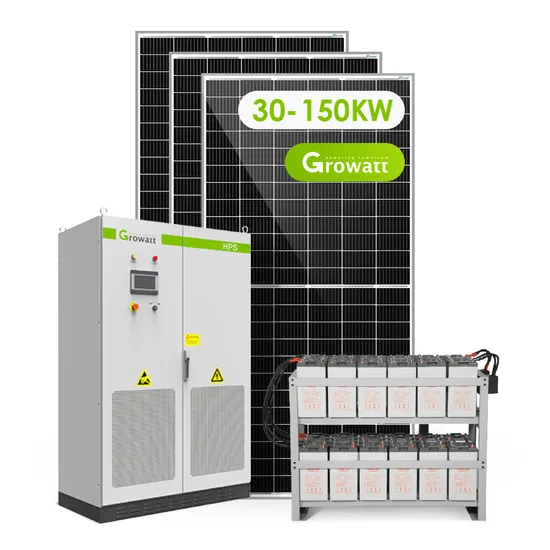

Complete Hybrid Solar Energy Storage System 30kw 50kw 100kw 120kw 150kw off on Grid Solar System with Lithium Battery

Product Description

Product DescriptionComplete Hybrid Solar Energy Storage System 30kw 50kw 100kw 120kw 150kw off on Grid Solar System with Lithium BatteryWhat's Included:

Model	LF30-150KW HY = 30 50 100 120 150
Hybrid Inverter( KW)	30KW	50KW	100KW	120KW	150KW
410W Mono Solar Panel (Pcs)	80	128	255	304	368
PV Combiner Box (Set)	1	1	2	2	3
Lead Acid Gel/ AGM Battery	2V 200AH-2V 3000AH
Quantity of Battery (Pcs)	180	180	180	180	180
DC Cable (m)	400	600	1200	1500	1800
Mounting System	Customized
Battery Rack	Customized
Battery Cable (Pcs)	180	180	180	180	180
MC4 (Pair)	30	50	100	120	150
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Off Grid System ConfigurationProducts DetailsMono Solar PanelsPeak Power Watts: 410W (SP410M-72H)
Maximum Power Voltage: 41.4V
Maximum Power Current: 9.91A
Open Circuit Voltage: 49.3V
Short Circuit Current: 10.41A
Dimensions:2024×1004×35 mm (79.69×39.53×1.38 inches)
Weight:22.8 kg (50.3 lb)Hybrid Solar InverterMax.DC Input Power: 30,50,100,120,150KW
Max. DC Input Voltage: 1000V
MPPT Voltage Range: 480-800VDC
Output Voltage: 400V(EU)
Wifi Stick For STD, Lan & GPRS Optional.Remote Monitoring SystemData Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or
GPRS. App Available for PC, IOS & AndriodPV Combiner BoxIP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs OptionalLead Acid GEL/AGM BatteryCapacity(kWh): 0.4/0.8/1.2/1.6/2
Nominal Voltage(Vdc): 2
Nominal Capacity(AH): 200/400/600/800/1000
Voltage Range(Vdc): 2.27 V~2.30 V
Depth of Discharge: 70%DC Cable & MC4 ConnectorCross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.PV ToolsWire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly ToolProduct PackagingProject Case Company ProfileHenan Livefun Solar Tech Co., Ltd. was established in 1998, Located in zhenghzou City, Henan Province. Factory with 10,000 square metersSpecializes in manufacturing all types of solar module, storage batteriessolar inverter Providing a complete solar system solution to meet different customers' requirementsWe have exported to Asia, Europe, America, Africa over 120 countries, our solar product acclaimed worldwide. We have professional R&D team, with professional production and strict quality inspection process. We have ISO, CE and TUV certificates. Also customized requirements are available.Contact US
