Model SP3818 Hot Runner System for Injection molding machine

Product Description

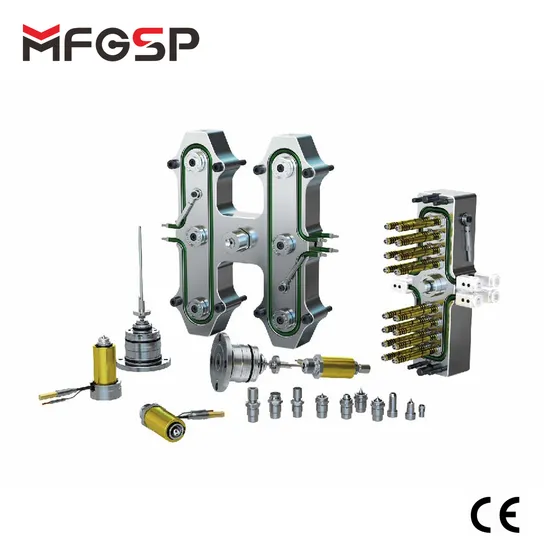

Hot Runner

Hot runner systerm is an advanced injection molding system. Nozzle and manifold block are heated under termperature control of the Temp-controller, so that the plastics from the nozzle of injection molding machine to the gate bush can keep the molten state.

Table of Nozzle Parameter and Specification
Project\Models	SP3515	SP3818	SP4425	SP6035	SP7045
Molding Weight(g)	<100g	<200g	<350g	<500g	≥500g
Pouring Gate(ΦA)	Φ3.0	Φ4.0	Φ5.0	Φ5.0	Φ6.0
Minimum Clearance Orifice(ΦD2)	Φ26.0	Φ30.0	Φ36.0	Φ48.0	Φ58.0
Dimension of nozzle flange(ΦD)	Φ35.0	Φ38.0	Φ44.0	Φ60.0	Φ70.0
Size of Sealing Compounds(ΦD1)	Φ12.0/Φ10.0	Φ14.0/Φ12.0	Φ18.0/Φ16.0	Φ26.0/Φ18.0	Φ34.0/Φ20.0
Sprue Gate(ΦG)	Φ1.0,Φ1.2,Φ1.5	Φ1.2,Φ1.8,Φ2.0	Φ2.0,Φ2.5,Φ3.0	Φ3.0,Φ3.5,Φ4.0	Φ4.0,Φ4.5,Φ5.0
Nozzle Length(mm)	60.00	60.00	70.00	90.00	100.00
	70.00	70.00	80.00	100.00	110.00
	80.00	80.00	90.00	110.00	120.00
	90.00	90.00	100.00	120.00	130.00
	100.00	100.00	110.00	130.00	140.00
	110.00	110.00	120.00	140.00	150.00
	120.00	120.00	130.00	150.00	160.00
	130.00	130.00	140.00	160.00	170.00
	140.00	140.00	150.00	170.00	180.00
	150.00	150.00	160.00	180.00	190.00
