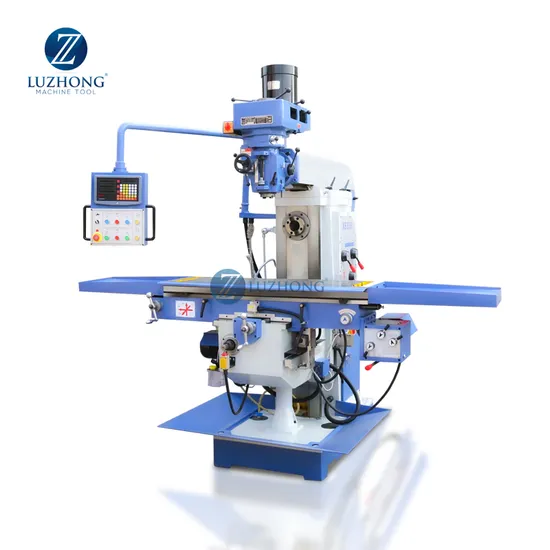

Universal Horizontal and Vertical X6336 Metal Turret Milling Machine With Power Feed
Basic Info.
Model NO.
X6336
Object
Hardware
Structure
Rocker
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Universal Horizontal and Vertical X6336 Metal Turr
Table Size
1270X320
Table Stroke
780X300X380
T-Type Slot Numbers / Width /Space
5-14-70
Distance Between Spindle Nose to Table S
150-500
Distance Between Spindle Axis and Column
150-550
Spindle Travel
127
Spindle Taper
ISO40
Spindle Motor Power
3.7(V) 2.2(H)
Transport Package
Plywood Case
Specification
Size of working table: 1270x320
Trademark
Luzhong Brand
Origin
China
HS Code
8459699000
Production Capacity
200 Pieces /Months
Product Description
Universal Horizontal and Vertical X6336 Metal Turret Milling Machine With Power Feed Product DescriptionProduct Parameters
Product main technical specifications:
| Specifications | Units | X6336 |
| Spindle taper | 7:24 ISO40(V);7:24 ISO50(H) | |
| Horizontal spindle center to table surface | mm | 0-380 |
| Horizontal spindle center to cross beam surface | mm | 230 |
| Spindle speed range | r/min | (16 steps)66-4540(V) (12 steps)60-1800(H) |
| Table size | mm | 1500×360 |
| Table travel(X/Y/Z) | mm | 1000/320/350 |
| Table X/Y axis auto feed speed | mm/min | 22-555(8steps)740(rapid traverse) |
| Table vertical lifting speed | mm/min | 590 |
| T slot(number/width/space) | mm | 3/18/80 |
| Cross beam travel | mm | 500 |
| Main motor power | kW | 3.7(V);4(H) |
| Table auto feed motor power | W | 750 |
| Table lifting motor power | W | 1100 |
| Coolant motor power | W | 90 |
| Coolant liquid | L/min | 25 |
| N.W./G.W. | kg | 2340/2500 |
| Machine size | mm | 2220x1790x2360 |
Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
