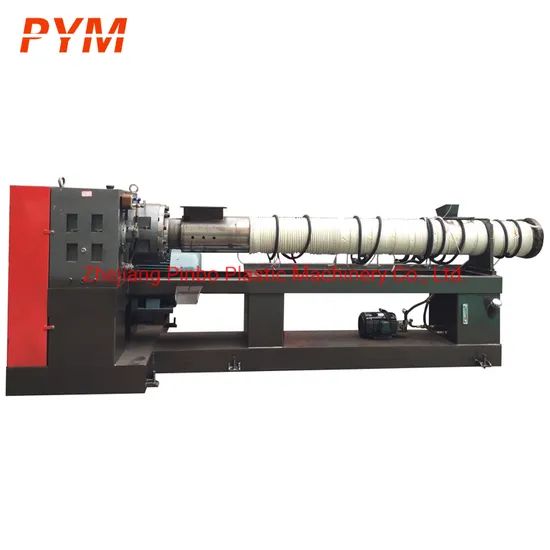

New Technology Plastic Recycling Machine

Product Description

This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
Representative Material:
Mixing nature-changing: PE, PP, PS+SBS, PA+EPDM, PP+NBR, EVA+Silicon rubber
PE, PA, PC, CPE+ABS, ABS+TPU, PBT+PET, PP+PE
Filling nature-changing: PE, PP, EVA, etc. +Calcium carbonate, talcum powder, titanic powder
PP, PA, ABS+ferrous powder, sulphuric powder, ceramic powder
Functional machine pellets: PP, PA, ABS, PBT, etc. +anti-burning agent and other auxiliary agents: Combustion- supporting machine pellets
Packaging&shipping
1. Standard packing is wooden case;
2. Delivery: By sea, by air or others, depend on you;
3. Fast and Low Cost Deliver: Long-term cooperated shipping forwarders.
4. Payments: T/T, L/C, Western Union etc.
Our advantage:
1. Long experience and history
2. Quality guarantee
3.24-hours service
4. Reasonable price and prompt after-sale service
5. Technical support and factory visit support
Ruian yumin machine screw co., ltd is a factory specialized in making screw barrel in various materails, filter, t die, gearbox, and extruder machine. We are largest one in Ruian city who supply main parts to machine- maker with the history over 24 years. Our workshops cover lands over5.000 cube meters. We have two factories in Ruian, with 4workshops.
We have many computer-control CNC milling machines with the length 8000mm in Fanuk series, 18000mm length deep hole drilling machine, and other advanced equipments. All the process is done by ourself, including nitrding treatment. We do nitriding treatment for 7 days and nights, which ensure the hardness and lifetime of screw barrel a lot. Meanwhile, our factory and products are passed the assessment by SGS company, and Bureau of Veritas, TUV, and CE certificate.
Welcome to visit our company! And any question, pls contact us freely.

Model	SJ-B90	SJ-B100	SJ-B110	SJ-B120
Type Diameter of Screw Stem	φ90	φ100	φ110	φ120
Major Diameter Ratio of Screw Stem	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000×1500×1800	4000×1500×1800	4000×1500×1800	4000×1500×1800
