Cut-in Centerless Grinding Machine O. D. Through Grinding Machine
Basic Info.
Model NO.
M1083B
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Grinding Diameter
2-40mm
Max. Grinding Length
120mm
Grinding Wheel Spec.
Psa350X125X127mm
Regulating Wheel Spec.
Psa250X125X75mm
Grinding Wheel Rotary Speed
1870 Rpm
Regulating Wheel Rotary Speed
10-200 Rpm
Machine Weight
2000kg
Roundness
0.002mm
Cylindricity
0.003mm
Roughness
Ra0.32um
Transport Package
Wooden Case Package, Waterproof Case Package
Specification
1550x1300x1405mm
Trademark
CHANGYI
Origin
Wuxi, China
HS Code
84602990
Production Capacity
50 Sets Per Year
Product Description

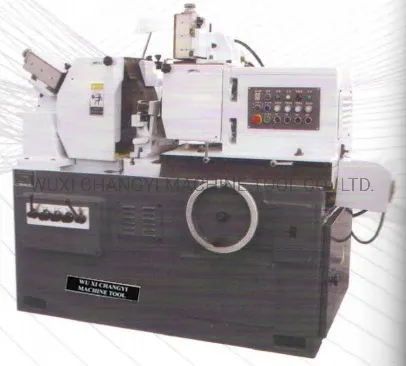

M1083B centerless grinder
M1083B Centerless grinder
Machine tool main characteristics
Through-grinding
Through grinding is mainly used to grind the cylindrical surface of all kinds of ring and shaft parts.
Cut-in grinding
Cut-in grinding is used for manual cut-in grinding of various stepped, conical and cylindrical rotating surfaces.
The machine bed adopts normalized heat treatment and natural aging treatment of high-quality castings to stabilize the internal structure and ensure strong wear resistance and small deformation in the process of use.
Grinding wheel, guide wheel device.
The grinding wheel is a cantilever structure, and the spindle of the grinding wheel adopts multi-piece long bearing dynamic pressure oil film bearing.
The regulating wheel is a cantilever structure, and the spindle adopts integral 1:30 conical sliding bearing.
Machine Tool main features
The main shaft of the lubrication device is lubricated by an independent lubricating oil tank.
The guide rail of the guide wheel frame of the feed device adopts flat V-type hydraulic unloading guide rail.
Dressing device grinding wheel, guide wheel dresser reciprocating are hydraulic transmission, stepless speed regulation.
| Technical data | |
| Plunge-feed | |
| Grinding diameter | 10-100mm |
| Grinding length | 195mm |
| Through-feed | |
| Grinding wheel specification | 10-100mm |
| Grinding length | 210mm |
| Grinding wheel specification | P500X200X305mm |
| Regulating wheel specification | PDA350X200X203mm |
| Grinding wheel speed | 1338rpm |
| Regulating wheel speed | 10-200rpm |
| Swiveling angle of regulating wheel | |
| Vertical | -2°~+5° |
| Horizontal | 0°~+3° |
| Feed/Division | 0.002mm |
| Dresser Feed Amount/Division | 0.01mm |
| Height from center line of grinding wheel and regulating wheel to work rest | 255mm |
| Total power | |
| Grinding wheel motor | 18.5kw |
| Regulating wheel motor | 2.2kw |
| Power supply | 3N 50Hz380V |
| Dimension |(L*W*H) | 2675*1505*1615mm |
| Machine weight | 4500kg |
| Accuracy ( Standard bars) | |
| Roundness | 0.002mm |
| Cylindricity | 0.003mm |
| Surface roughness | Ra0.32um |
