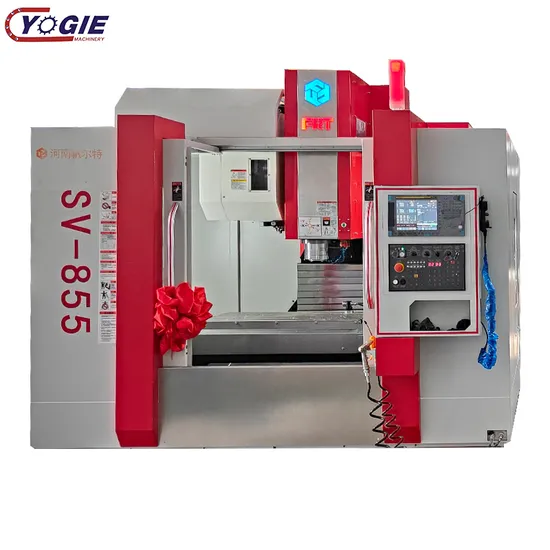

in Stock 3 Axis CNC Milling Machine Vmc855 CNC Vertical Machining Center for Sale
| US$21,500.00-48,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC 855
Type
Gantry Type Milling Machine
Object
Gear,Shaft,Machinery Parts
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
ISO 9001
Condition
New
CNC Operating System
Siemens/Fanuc/Knd
Working Table Size
500*1000mm
Left and Right Stroke (X)
800mm
Back and Forth Stroke (Y)
550mm
up and Down Stroke (Z)
550mm
Distance From Spindle End to Worktable S
110-610mm
Spindle Taper
Bt40
X/Y/Z Rapid Traverse Speed
10/10/10 M/Min
Spindle Speed (Rpm)
8000-10000rpm
Machine Tool Positioning Accuracy (GB /
0.01
Repeated Positioning Accuracy of Machine
0.01
Spindle Power
7.5kw
Power Supply Requirements
380V
Tool Changer
24
Number of Axes
3
Transport Package
Customized
Specification
Customized
Trademark
YOGIE
Origin
China, Henan
Product Description
Product DescriptionProduct Parameters
| Technical specification | FRT-V855 | FRT-V1160 | FRT-V1370 | FRT-L1580 | |
| Travel | |||||
| XYZ axis travel (worklable left and right movement) | mm | 800/550/550 | 1100/600/600 | 1300/700/800 | 1500/800/700 |
| Distance of spindle nose andworking table surface | mm | 105-655 | 180-780 | 150-950 | 170-870 |
| Guide rail | V stands for three lines and L stands for two lines and one hardened rail | ||||
| Work Table | |||||
| Table size | mm | 500X1000 | 600X1100 | 700X1300 | 800X1800 |
| The maximum load capacity of the worktable | kg | 600 | 800 | 1000 | 1500 |
| Spindle | |||||
| The spindle taper (model, sleeve diameter) | BT50 | ||||
| The spindle dimension | mm | BT40/150 | BT40/150 | BT50/155 | BT50/155 |
| Thespindle motor power | kw | 5.5-7.5 | 7.5-11 | 11-15 | 11-15 |
| Spindle speed | rpm | 8000 | 8000 | 8000 | 8000 |
| Accuracy | |||||
| Precision of position | mm | 0.01/1000 | |||
| Accuracy of repeated position | mm | ±0.01 | |||
| Size | |||||
| Netweight(approx.) | kg | 5300 | 6700 | 8200 | 12000 |
Company Profile
Our Customers
FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
