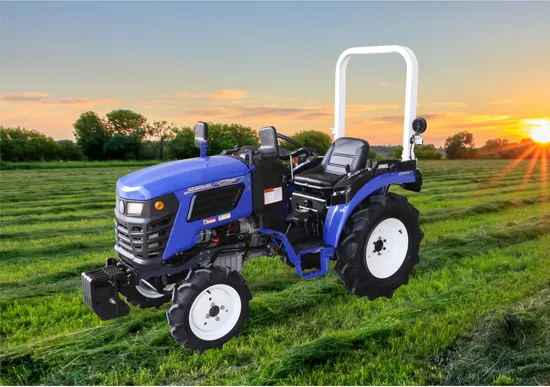

Seeyes Tractor with a Diesel Engine Ta304 Series Wheeled Tractor Ta304-A9

Product Description

Main Parameters

Model		-	TA304-A9
Purpose		-	Agriculture And Horticulture Multipurpose
Specification		mm	2634*970*1840
Ground Clearance		mm	285
Matching Engine	Manufacturing Enterprise	-	ZHEJIANG SELEHE AGRICULTURE EQUIPMENT CO., LTD.
	Model And Specification	-	XY477-30
	Rated Power	kw	22.3
	Rated Speed	rpm	2800
	Emission Standard	-	Euro 5
	Weight	kg	128
Front Wheel	Structural Form	-	With Inner Tube, Steel Hub, Dry land Wheel
	Specification	inch	5.00-12
	Wheel Track	mm	770 (standard)/960-1200 (adjustable)
Rear Wheel	Structural Form	-	Without Inner Tube, Steel Hub, Dry land Wheel
	Specification	inch	8-16
	Wheel Track	mm	770 (standard)/960-1200 (adjustable)
Wheelbase		mm	1370
Turning Radius		mm	1700
Function		-	Hydraulic Lifting
		-	Pto Output
		-	Three-point Standard Suspension (class 1n, Standard Gb/t 1593-2015)
Traveling Speed			Backward	Forward 1	Forward 2	Forward 3
	High Speed	Km/h	9.14	4.6	9.4	16.5
	Medium Speed	Km/h	5.1	2.5	5.2	9.1
	Low Speed	Km/h	1.38	0.69	1.4	2.47
Pto Shaft Revolving Speed			Backward Rotation	Forward Rotation 1		Forward Rotation 2
		rpm	581	592		1041

Main Characteristics
In addition to these features, the TA304-A9 possesses many other characteristics that make it an ideal choice for various agricultural and horticultural applications: 1. Four-wheel drive Enhanced traction and adhesion, coupled with robust power and superior trafficability, guarantee heightened efficiency. You can experience improved handling and longitudinal stability. 2. Double-speed turning It can reduce the turning radius from 2.3 meters to 1.7 meters, effectively reducing the turning radius, and ensuring exceptional maneuverability even in confined farmlands. 3. Mechanical + hydraulic power steering A high-pressure hydraulic system enables seamless steering, even in the most challenging farmland terrain. You can experience wide-ranging applications with unmatched reliability. 4. Nine forward gears, three reverse gears It provides a rich selection of gears for precise tractor speed adjustment. You can experience smoother torque output for enhanced performance. 5. Variable front and rear wheel track (excellent agronomic adaptability) It boasts excellent plot adaptability and can be adjusted according to agronomic requirements. Six types of wheel track are available: 770, 960, 1020, 1080, 1140, 1200. 6. Rollover protection system (ROPS) In addition to coping with unexpected situations and protecting the driver's safety , it can also fortify the machine's structural strength and resistance to distortion. 7. Forward two gears of PTO rear shaft The PTO rear output shaft has two speeds adjustable. 8. 25-horsepower, 30-horsepower diesel engine This powerful, fuel-efficient, and low-noise engine is China's first non-road small-bore multi-cylinder diesel engine adhering to the China National Emission Standard 4. 9. Hand-controlled and foot-controlled electronic throttle It provides a richer choice of driving control, so that users with different driving preferences can quickly adapt to the driving control system. 10. Differential lock function Bolstered turning and maneuvering capabilities in sunken farmland enhances overall reliability. 11. Versatile for paddy and dry farmland (285 mm ground clearance for dry farmland, 355 mm ground clearance for paddy farmland) In addition to the original dry farmland wheel (285mm ground clearance), the paddy farmland wheel (355mm ground clearance) can also be available, which greatly enhances the adaptability of the farmland. 12. Concealed muffler The muffler is strategically positioned under the left hood, so that the machine can run normally in the working scene of limited height such as the greenhouse. 13. Ergonomic design Centralized operation handle and platform-based layout ensure user-friendly operation. 14. Sealed bevel gear front axle It can prevent the infiltration of muddy water and debris, minimizing oil leaks, reducing maintenance frequency, and significantly extending service life.
Company Information
Established in 2015, SELEHE is a subsidiary of China Xinyue Group, specializing in modern agricultural machinery. With a vision to "Craft High-Qualified Agricultural Machines and Build Top Brand," SELEHE has earned numerous accolades and holds over 104 patents for its innovative products. The company's independent manufacturing capacity for spare parts exceeds 85%, and its SEEYES brand has become a national leader in high-speed transplanters and compact tractors, contributing significantly to China's agricultural development.
Our Products
WHEELED TRACTOR TA254-A6/TA254-A9 TA304-A9 TD404-A9/TB404-H1 TC504-A8
RICE TRANSPLANTER 2ZG-4QR 2ZG-6QR/2ZG-6A/2ZG-6B 2ZG-6AC 2ZG-8AJ/2ZG-8BJ 2ZG-8QRX/2ZG-8AX/2ZG-8BX 2ZG-8A/2ZG-8B 2FCF-6 2FCF-8
Certificate
FAQ
Q:Are you a manufacturer or trader ?
A: We specialize in manufacturing, equipped with an in-house R&D department and sales force, offering comprehensive services.
Q: Where can tractor be used?
A: Our tractors are multifunctional. They can be used in various conditions, such as gardens, paddy fields, dry farmlands, etc.
Q: Which tractor do I need?
A: We supply varied horsepower tractors to our clients, inclusive of 25, 30, 40 50 horsepower. You can choose any type in accordance with your requirements.
Q: What is your minimum order quantity?
A: The minimum order quantity is 1 set.
Q: How can I pay for your products?
A:We accept T/T and SWIFT.
Q: What steps do we take to guarantee quality?
A: We conduct thorough inspections on all products prior to shipping to ensure they meet our quality standards.
Q: What after-sales services can I get?
A: We will provide you with technical training.
Q: Where can I get more information about your products?
A: Please send message to our sales managers asking for further details.
