Automatic 3 Layer Plastic Film Bubble Wrapping Film Making Extrusion Machine
| US$10,000.00-70,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PB-1600/2000/2500-3
Type
Plastic Extruder
Plastic Processed
LDPE LLDPE HDPE
Product Type
Bubble Film Machine
Feeding Mode
Multiple Feed
Assembly Structure
Separate Type Extruder
Screw
Multi-Screw
Engagement System
Non-Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Applied Material
LDPE, LLDPE
Vlotage
Can Be Customized
Max. Extrusion Capacity
100-250kg/Hr
Max.Rewinder Dia.
1000mm
Power(W)
80kw
Weight
10 T
Screw L/D
30:1
Color
Can Be Customized
Roll Exchange
by Auto Cut & Exchange
Film Width
1600mm / 2000mm/2500mm
Package
Film Wrapping
Machine Dimension
12mx5.5mx3.5m(Lxwxh)
Key Words
3 to 7 Layer Polyethylene Compound Bubble Film Mac
Transportation Package
Film Package
Transport Package
Standard Packing
Specification
12mX5.5mX3.5m(LXWXH)
Trademark
PYM
Origin
Zhejiang Province Wenzhou City
HS Code
84778000
Production Capacity
200sets/Year
Product Description
Notes: We have single layer - 5-7 layer air bubble film machine, pls be free to text me about your detailed requirements for the machine, such as screw quantity, film structure, film width etc. Product DescriptionPB-1600/2000/2500-3 Automatic 3 Layer Plastic Film Bubble Wrapping Film Making Extrusion Machine
Characteristics
1. Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.
2. The cooling device adopts cycle water cooling which provide the best transparent effect of the bubble film
3. Rewinder adopts with double station auto changer, optional is auto cutter .

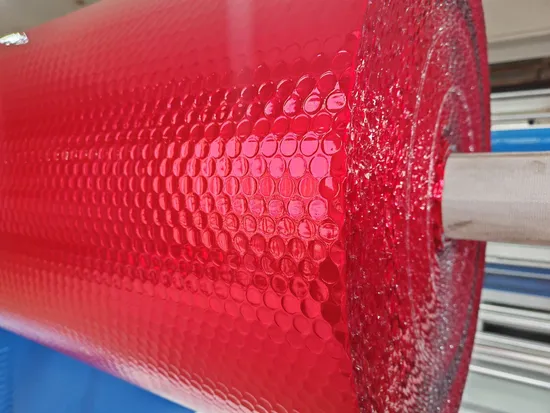

Air Bubble Film Structure:
Polyethylene air-bubble film(also called polyethylene bubble film).which is divided into two kind :
1.ordinary polyethylene air-bubble film.
2.composite polyethylene air-bubble film.
This machine can produce Two layers(single side) and 3 layers, pe film+air bubble layer film+pe film.
The air bubble film has many kinds of usage, like that the film surface laminates kraft paper as express packing bag and laminates the aluminized polyester film as the thermal insulation film.
is a kind of packing material which has been widely used at present. It not only has good cushioning effect, shock resistance and heat-sealing performance, but also has such advantages as good corrosion resistance and transparency , etc. So it has been widely used for packing, household wares, post parcel, bicycle , polyurethane furniture, etc.
Detailed Photos
Packaging & Shipping
Product Parameters
| Type | PB-1200-3 | PB-1600-3 | PB-2000-3 |
| Screw diameter | 65/55/55mm | 75/65/65mm | 90/75/75mm |
| L/D | 33:1 | 33:1 | 33:1 |
| Motor power | 18.5/15/15 kw | 22/18.5/18.5 kw | 37/22/22 kw |
| Product width | 1200mm | 1600mm | 2000mm |
| Production capacity | 100kg/hr | 140kg/hr | 180kg/hr |
| Bubble Szie | can be customized | ||
