Bending Center Mode CNC Steel Bending Machine Horizontal Bevel Type Panel Bender

Product Description

Hot Sale Automatic Panel Bender Stainless Steel Bending Machine
Product introduction
The Whole Structure of Press Brake:
Totally European design, streamlined looking
Taking off inner-stress of welded parts by tempering, good stability
Remove rust with sand-blast and coated with anti-rust paint
Adopt Spanish pentahedron machine center, once clamping can finish all working surfaces which will
guarantee dimension precision and position precision.
The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time.
Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.
Supplying three front sheet supports , Finish of Nippon Polyurethane paint.
The Whole Structure of Press Brake:
Totally European design, streamlined looking
Taking off inner-stress of welded parts by tempering, good stability
Remove rust with sand-blast and coated with anti-rust paint
Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.
Supplying three front sheet supports , Finish of Nippon Polyurethane paint
2) Ram structure:
Upper stroke design for bending, low noise, stable operating situation , Parallel tolerance of Y1 and Y2 is 0.01mm
Y1,Y2 can be programmed separately can work under non-balance load, can bend cone-shape work piece
At bottom dead center a pressure-keeping time is offered, and can be programmed to assure precision of all kinds of work piece. Can move the ram up slowly, which allows the operator to control work piece conveniently Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest! Hydraulic system: Close loop electro-hydraulic synchronized servo-control system, the most advanced
Hydraulic system is from Rexroth, Germany, a full loop electric-hydraulic proportional servo control, Sumitomo oil pump, Japan.
Imported linear optical reader, guiding system, positioning system and hydraulic balancing system with
high precision, which all can permit the processing work piece of full length or with eccentric.
An outfit with "C" is at throat, as deformation compensation on throat, directly measuring the distance
between upper tool and low die, assuring the precision of work piece.
All seals in cylinder is imported, the most famous brand, good quality and high performance
Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level
can be read or seen directly
Being able to work under rated load continuously, stable working and high precision
4) CNC Back gauge:
Close loop electro-hydraulic synchronized servo-control system,the most advanced
Good for work piece needing multiple steps of bending with high precision requirement.
X is moved with ball screw,guided by linear guide,and driven by digital AC servo-motor.
Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
Two fingers are moving alone swallow guide,operate easily with high precision
Particular finger-stop design,enlarge the range of back gauge.
Attachment with the machine& Machine key components list

No.	1 years spares	Remark		Name	Origin
1-	Grease gun& foot switch	Free of charge		Asynchronous motor	Siemens, Germany
2-	Keys to button lock and electric cabinet lock	FOC		Controller	Delem DA52, Holland
3-	Foundation bolts	FOC		Transformer	SCHNEIDER
4-	O-type sealing rings	FOC		AC contactor	SCHNEIDER
5-	Combined washers	FOC		Circuit Breakers	SCHNEIDER
6-	Mobile type foot switch			Servo motor	Estun
7-	Operation & maintenance manual	In English		Gear pump	Siemens pump
8-	Electrical diagram	In English		Sealing parts	Valqua ,Japan
9-	Operation Instruction ENGLISH Operation Instruction(Machine) Packing list, Instruction of System Certificates of quality			Hydraulic Integrated Systems	Bosch, Germany,
				Quick release	China Shanghai

Detailed Photos:
Casting Bed Automatic Panel Bender 1400mm Sheet Metal smart panel Bending Machine
Primapress panel bender bending center adopts a full servo system. Unlike traditional bending machines, the bending machine mold needs to be pressed down against the fixed part of the bending machine, but the bending work is completed by the blade. During the bending process, the plate The material holder fixes the plate. The blade can be bent up or down in different shapes. First, one side is bent outward, and then it is automatically bent inward. These different actions are controlled by the servo electric drive device, which can ensure the highest positioning accuracy in the bending sequence and bring the best bending effect.
Industry Application*Food machinery, goods and household appliances
*Steel furniture, sheet metal and warehouse *Electrical cabinet
*Steel door and frame *Elevators and escalators
*Generators *Hospital and laboratory equipment
*HVAC *lighting device
PRODUCT SPECIFICATIONS

0	Model	PM1400
1	Maximum bending speed	0.2 s/time
2	Maximum bending width	1400mm
3	Maximum bending size	1400*1400mm
4	Bending height	170mm
5	The rated voltage	380V
6	Peak power	25KW
7	CNC system	PC-Base New Independent Research and Development 9 Axis Linkage Full Servo CNC System
8	Lathe bed	Casting bed

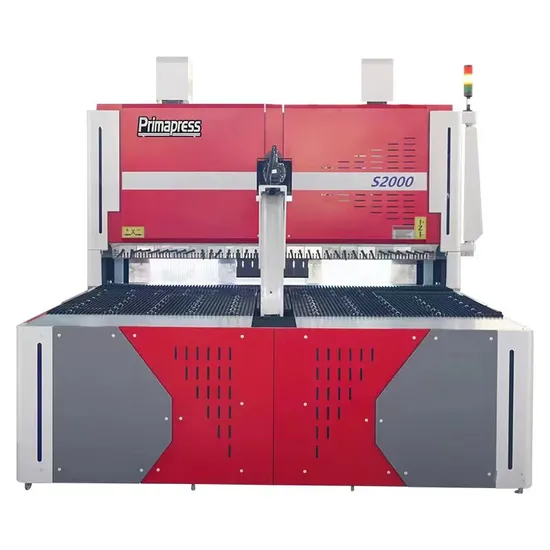

15 Axis Sheet Metal Bending Center Panel Bending Machine CNC 2000mm
Primapress panel bender bending center adopts a full servo system. Unlike traditional bending machines, the bending machine mold needs to be pressed down against the fixed part of the bending machine, but the bending work is completed by the blade. During the bending process, the plate The material holder fixes the plate. The blade can be bent up or down in different shapes. First, one side is bent outward, and then it is automatically bent inward. These different actions are controlled by the servo electric drive device, which can ensure the highest positioning accuracy in the bending sequence and bring the best bending effect.
Industry Application*Food machinery, goods and household appliances
*Steel furniture, sheet metal and warehouse *Electrical cabinet
*Steel door and frame *Elevators and escalators
*Generators *Hospital and laboratory equipment
*HVAC *lighting device
Product Paramenters

Name	Brands
Operating system	Above Windows 7
Control system	9 axis + concurrent linkage control system
Servo motor	Independent R&D, full closed-loop control
Screw	Taiwan-HIWIN
Bearing	NSK
Linear guide	Taiwan-HIWIN
Machine bed	High grade casting integral forming
Bending knife	Patented ball cutter head, more wear-resistant, longer service life
Sucker	AIRBEST
Pneumatic component	Japan SMC
Oil system	Taiwan

About Prima Factory:
Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment. Widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have their own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company already has CE certification and have one international after-sales team , Our machines are widely exported to Southeast Asia, EU, USA , South America, the Middle East and other markets around 100 nations with good quality, suitable price, comprehensive after-sales service, was widely welcomed by customers and unanimously approved. Our company ambition is "build quality brand, do excellent machine",it is also the company's entrepreneurial spirit and look forward to domestic and overseas friends to visit.
FAQ: Q1. Trade company or manufacturer?
A: We manufacturer
Q2. Is it easy to operate for the new user ?
A: very easy
Q3. What should I do when the machine is in trouble?
A: Take photos and videos and contact our sales at once.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: A couple of hours
Q5: Is it harmful to human body when in operation ?
A: no,very safe.
