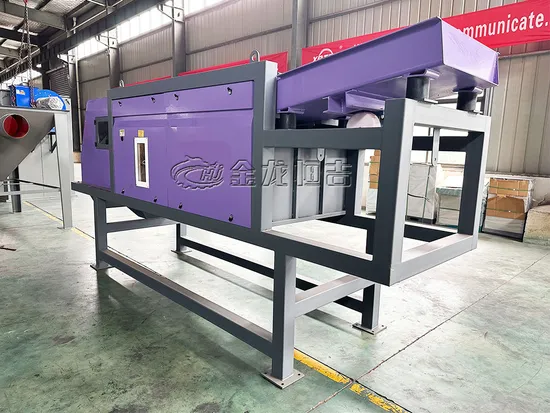

High Efficiency Eddy Current Separator Scrap Aluminum Separation Recovery Machine Plastic Non-Ferrous Metals Sorter

Product Description

Product Description High Efficiency Eddy Current Separator Scrap Aluminum Separation Recovery Machine Plastic Non-Ferrous Metals Sorter
Eccentric Eddy Current Separator For Sorting Waste Scraps And Flakes With Non-ferrous Metal Aluminum And Copper Eddy Current Separator can be widely used in the field of environmental protection such as waste disposal, waste electrical appliances recycling and non-ferrous metal processing industry. The non-ferrous metals are recovered from the crushing materials of the automobile dismantling plant, from the copper aluminum casting sand and smelting ash, and from the waste motor crushing materials; the non-ferrous metals are recovered from the incinerated printed circuit board, from the domestic waste, industrial waste, electronic waste treatment, waste plastic doors and windows, boiler bottom ash and other non-ferrous metals. Detailed Photos Metal Eddy Current Separator is designed based on the principle that conductor can produce induced current in high frequency alternating magnetic field. When the machine works, it will produce a high frequency alternating strong magnetic field on the surface of the sorting magnetic roller. When the non-ferrous metal of the conductor enters the magnetic field sorting area, it will induce a eddy current inside the metal block. The eddy current itself will produce a magnetic field in the opposite direction of the magnetic field. The non-ferrous metal (such as copper and aluminum) will leap forward along its conveying direction due to the repulsive force of the magnetic field, thus realizing Separation with other non-metallic materials, to achieve the purpose of separation, the main area of separation effect judgment is based on the material conductivity and density ratio value of the material is easier to separate.
Components of eddy current separator The eddy current equipment is composed of two parts: control and main body. The main part mainly consists of frame, motor, distributor, separator (the core part of the equipment) permanent magnetic drum, conveyor belt, conveyor drive drum, reducer and protective cover.
Products Advantage 1. Simple operation, automatic separation of metal and non-metal; reliable single power design, making the system compact and reliable;
2. The span of separable metal particles is large, usually between 3mm and 100mm;
3. Easy to install, customized according to the customer's needs, can be effectively connected with the new and existing assembly line;
4. Using high gradient rare earth permanent magnet system, the energy consumption is low and the maintenance is convenient;
5. According to the different turning direction of the rotor, different size materials can be sorted;
6. Various models are available (the width of the material tray can be 300 mm to 1500 mm).
Model of Parameter

Model	Magnetic roller (φ)	Capacity (T/H)	Power (kw)	Size (mm)
HJ400	300	1-2	3+0.55+0.25	2885*1500*1693
HJ600	300	2-4	4+0.75+0.25	2885*1700*1695
HJ800	300	5-6	5.5+1.1+0.55	2950*1900*1695
HJ1000	300	8-10	7.5+1.5+0.55	2950*2100*1695
