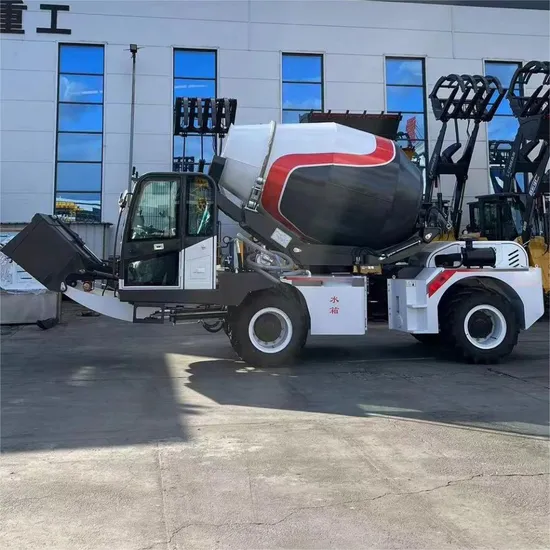

L3200 Small Mobile Self-Loading Construction Concrete Truck Mixer
| US$13,500.00-14,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
L3200
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Red
Volume of The Mixed Tank
3200 Liters
Mixed Tank Speed
15 Rpm
Pipeline
24 ° O-Ring Sealing Joints
Transmission System
Full Hydraulic Heavy-Duty Transmission
Transport Package
Nude Package
Specification
7300*2650*3750mm
Trademark
XINYU
Origin
China
Production Capacity
12000 Sets/Year
Packaging & Delivery
Package Size
730.00cm * 265.00cm * 375.00cm
Package Gross Weight
4000.000kg
Product Description
| Price List for Mixing Truck Configuration | ||
| L2200 mobile self loading concrete mixer truck | YN27GBZ | The geometric volume of the tank is 2200 liters, the liner is equipped with oil-free suction bearings, wheel edge speed bridges, four caliper brakes, a fully hydraulic heavy-duty transmission (with high and low speeds) with front four and rear two tires, automatic water filling, reverse imaging, dual pump, secondary hydraulic oil filtration system, full pilot control, pipeline adopts 24 ° O-ring sealing joints, handover steering, temperature controlled heat dissipation and mixing system, submersible technology forward tilting unloading, and tank speed is 15 rpm |
| YH4H575-34VE | ||
| L3200 mobile self loading concrete support mixer truck | YH38GBZ | Body geometry with a capacity of 3200 liters, fully hydraulic weighted variable connection box (with high and low speeds), wheel side salty speed axle, four caliper brakes, front four and rear two tires, automatic water filling, reverse image, dual connection pump, secondary hydraulic oil filtration system, full pilot control, dual filtration, pipeline with 24 ° O-ring sealing joint, handover type steering, temperature controlled heat dissipation and mixing system, tank body forward tilting unloading, excavator rotation system, submersible can rotate 270 °, submersible speed 15 rpm |
| YN4EL109-30CR | ||
| L4200 mobile self loading concrete mixer truck | Yuchai YCD4M22T-105 | Body geometry sound volume 4200 liters, fully hydraulic weighted variable connection box (with high and low speed), specially designed large wheel edge salty speed axle, four sweet brakes, 1670-20 tires, automatic metering water, reverse image, dual connection pump, secondary hydraulic oil filtration system, full pilot control, dual filtration, pipeline adopts 24 ° with 0-shaped ring sealing joint, handover type steering, temperature controlled heat dissipation mixing system, tank body forward tilting unloading, excavator rotation system, certificate body can rotate 270 °, submersible speed 15 rpm |
| Yuchai YCD4T33T6-100 | ||
| L5000 motor mobile self loading concrete mixer truck | Yuchai YCD4J22T-115 | The tank has a geometric volume of 5000 liters, a fully hydraulic heavy-duty transmission (with high and low speeds), a specially designed large wheel edge saltwater axle, four sweet brakes, 1670-20 tires, automatic water filling, reverse image, dual pump, secondary hydraulic oil filtration system, full pilot control, lifting and lowering large buffering fatigue device, dual filtration, and a 24 "0-ring sealing joint for the pipeline, handover type steering, temperature control emblem hot mixing system, submersible forward tilting unloading, excavator rotation system, submersible can rotate 270 °, and the tank has a speed of 22 rpm imported main plug motor |
| Yuchai YCD4T33T6-115 | ||
| L5800 imported motor mobile self loading mixed temperature soil mixer truck | Yuchai YCD4J22T-125 | Body geometry with a capacity of 5800 liters, fully hydraulic weighted variable connection box (with high and low speeds), specially designed large wheel edge salty speed axle, four caliper brake, 1870-20 tires, automatic water filling in the meter, reverse image, dual pump, secondary hydraulic oil filtration system, full pilot control, lifting arm buffer night pressure device, dual filtration, pipeline with 24 ° O-ring sealing joint, cross arm rotating joint, temperature controlled heat dissipation system, tank body forward tilting unloading, excavator rotation system, submersible body rotatable 270 ", tank body speed 22 rpm imported main plug motor |
| Yuchai YCDTJ33T6-140 | ||
FAQ :
1. What Certificate do you have?
TDER workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
TDER will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TDER
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
