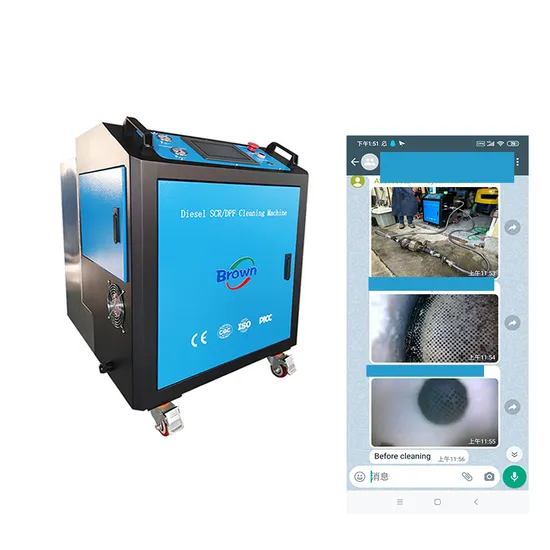

SCR Catalytic and DPF Diesel Particulate Filter Machine High Pressure Cleaner of Cleaning Machine to Energy Saving and Emission Reduction

Product Description

Wuhan Brown as a professional High-technical manufactures & supplier,which major in the a series of production of engine carbon cleaning machine; catalytic converter cleaning machine;SCR/DPF cleaning machine;EGR cleaning machine etc on basis of Research, technical supporting,after-service guidance and various authority certification
Please kindly check the kinds of Services we could do for our clients;
1.OEM Project,such as:Color;Language;Brand;Logo;etc/
2.Technical Supporting & Suggestion;
3.On-line Service Guidance & After Service Guidance;
4.Waranty Period:1Year
5.Competitive Rate under SOP Standard

Product Parameters
Specifications:

Model No.	BR-SCR-B02
Dimensions(L*W*H)	730*750*855mm
Weight	105kg
Voltage	380V(customized design at your needs)
Rated power	14Kw
Water tank	120L
Connecting pipe	40mm
Flow rate	10m³/h

Our Advantages 1.Stainless steel Materials of machine setting body,all clamps;Solid & durable working
2.Multiplable equipped with joints 40mm-160mm;which is well -adapted to the different size of DPF/FAP/SCR,smaller, medium,and large etc.
3.Especially for Large specification Diesel could be cleaned also because of 120L high-capacity Pump;
4.With Strength Washing effective under high pressure cleaning pump
5.Best Cleaning effective to slove the problem of serious blockages could be dredged up while bursting & shocking per 30s during the working period under the special technology of air pressure bursting & micro bubble cleaning function
6.Touching operation on Screen + PLC system
7.Circly cleaning with high temperature to reach the high-effective of dredging blockage
8.No need to unload the DPF/FAP/SCR ,easily installate and disassmble quickly and conveniently
9.Adjustable choice of cleaning time and haeting temperature
10.Using life of DPF/FAP/SCR can be prolonged
11.Saving Energy conservation & Reduction of emmission
12.Automaticly clean,easily operate;
Accessory List :

Item	Model	Qty
Machine	BR-SCR-B02	1
Connecting hose	25*33 steel wire negative pressure pipe with 1 inch quick connector L=3M	2
Air bag joint	DN25 air bag joint component DN40 air bag joint component	2 2
Drainage ball valve	1 inch outer wire pagoda ball valve (k20-g1)	1
Air bag	Inflatable pipe22*30 L=120 Inflatable pipe 48*58 L=150	2 2
Rubber band	Rubber band 80*20*1.5 Rubber band160*20*1.5	2 2

Product Description
case
feed back
Exhibition

Certifications
Company Profile Wuhan Brown Environment & Energy Co.,Ltd as a high-tech enterprise ,which intergarte in the series of Research ,Development ,Producing and Technical services and sales etc.
We are professioanl in reaserching & producing of various cleaning machine,such as:Engine Carbon cleaningmachine;Catalytic converter cleaning machine;Diesel SCR/DPF cleaning machine;EGR Cleaning Machine and relation with some chemical cleaning agent.
A professional Engineer team we owned as a key part to design of machine; techinical consulting.All steps of production from assembly compeletly ;wiring of electronic;program system;and second assemble of machine ;and fina test are under the high management of standard operation process providing superior and satisified service to our customers.
Various national invention patents with Completely independent intellectual property rights ; ISO certificate of quality &management;CE certification of all products;Authority testing report from government.All these are always biggest foundation of our stragytic to develop in domestic & oversea market to gain good feedback and high reputation of advanced skill,superior quality,high performance for many years.
Adhereing to the aim of eco-green;reduction of emmission;environmental protection;circlying;development sustainability devotes to the solutions of Vehicle caring&maintenance industry and exhaust emission treatment all the time, and strive to be the most famous brand in new energy industry
Taking the customer's demand as the director,we would like to be your sincereity service expert in the vehicle & environment protection by our best effort under innovated-technical supporting.
