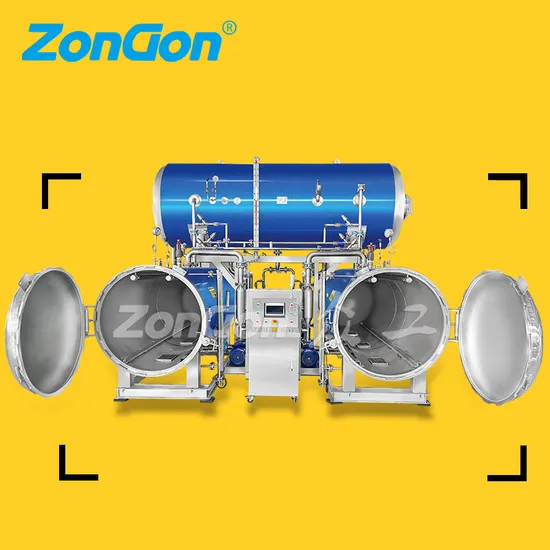

Small Glass Jars and Bottle Cooker Food Autoclave Retort Sterilizer Machine

Product Description

Product Description
Water immersion retort uses the unique liquid flow switching technology to improve the uniformity of temperature inside the retort vessel. Hot water is prepared in advance in the hot water tank to start the sterilization process at high temperature and achieve the fast temperature rising, after sterilization, hot water is recycled and pumped back to the hot water tank to achieve the purpose of energy-saving.
EQUIPMENT CHARACTERISTICS
A. The sterilizing water is preheated, and the sterilization temperature starts at a high point, which shortens the sterilization time and protects the product quality.
B. The hot water after the sterilization is recycled to the upper tank to save steam, energy consumption and sterilization time.
C. For flexible packaging products,especially large-head packaging,the heat penetration rate is fast and the sterilization effect is good.
D. PLC computer control, sterilization to achieve standardization.
E. It can be equipped with a F0 value control system to make sterilization more scientific.
F. The heat distribution is uniform and the product quality is easily controlled.
Product Parameters
We can custom based on your requirement

Model	900	1000		1200		1400	1500		1600
Kettle Length(mm)	1800	2200	2400	2700	3600	4000	4000	5000	7250
Total Capacity(m³)	1.35	2.06	2.16	3.7	4.6	6.89	7.97	9.73	15.5
Body Thickness(mm)	4	4	4	5	5	6	6	6	6
Installed Power	1.5	3	3	5.5	5.5	11	11	11	18.5
Designed Pressure(Mpa)	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35
Designed Temperature(ºC)	147	147	147	147	147	147	147	147	147

Application scope:
Autoclave has been widely used in food industry and pharmaceutical industry, such as juice, soup, milk, sauce, meat, fish,vegetable, fruit, caned food, beer, etc.
It can be applied for many types package material, such as glass bottle,PP bottle, HDPE bottle, metal can, aluminum can, plastic pouch, aluminum foil bag etc.
Features 1. Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization,no pollution.


Our Factory
Our company is mainly engaged in food retort machine,such as cooking kettle,temperature and pressure differential expansion equipment and several processing lines,water spray retort,double water immersion retort,lab retort,steam/steam air retort,rotary retort,swing/shaking retort,new air-conditioned spray retort,gas jacketed kettle,electric jacketed kettle,steam jacketed kettle,automatic loading and unloading cage production line, egg production line, fresh corn production line, pet canning lines.

Packaging & Shipping
Certifications
As a professional manufacturer of food retort machine,all of our equipment have passed CE,ISO9001,DOSH,ASME,BV, KCS,COC and MOM certification,and obtained
more than 40 utility model patents.

After Sales Service
FAQ
1. What if there is something wrong with the machine within one and half year?
We have two ways to solve this problem:
1) Phone call guidance to confirm the problem.
2) We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
2. When will it be delivered?
Our products are customized to your needs, so it will take about 50 days, unless you need them, we just have them in stock
3. Is it possible to visit the factory?
Of course, we have sample rooms for customers to visit. We also have sterilization experiments according to your samples
4.How to install the equipment when it arrives?
We provide one-to-one installation guidance for foreign customers online, or according to your requirements, we can arrange after-sales engineers to provide on-site installation guidance
5.How to ensure the quality of equipment?
We have many years of export experience, and have a variety of equipment quality inspection certificates,we will test the machine before leaving the factory. If you need it, we can also test the heat distribution. What you have in your hand is definitely a qualified equipment
