Automatic Facial Tissue Paper Soft Packing and Carton Box Packing Machine Production Line

Product Description

Automatic box facial tissue paper machine production line price
XY-GU-A-BD

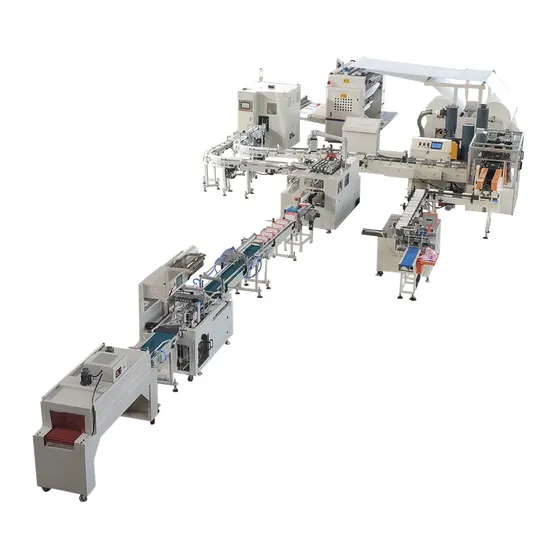

XY-GU-A-D High-speed facial tissue carton production line which composed of one set of XY-GU-20A Full-automatic box-drawing facial tissue machine, one set of XY-GU-281 Facial tissue cutting machine ,one set of XY-GU-388 Full-automatic high-speed carton packing machine,one set of XY-BT-298 automatic facial tissue soft packing machine and one set of XY-GU-26B high speed facia tissue bundle packing machine.XY-GU-A-BD High speed facial tissue production line combined embossing, folding, counting, match with high-speed paper cutting machine, conveying, automatic box, automatic seal box. It much save manpower. This machine adopt PLC computer programming technology, frequency control, servo feeding control, match with touch type screen man-machine interface operating system. The whole machine adopts synchronous belt drive. Folding machine can match with automatic tension control system, to suitable various kind of raw material, greatly improve quality and efficiency. This production enjoy with easy operation flow, high production efficiency, perfect product , moreover, it can match with full-automatic heat shrink packaging machine.
XY-GU-20A Automatic facial tissue making machineThe jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then interfolded into inter overlapped rectangular facial tissue sheets. This machine have automatic marking functions. It features of high speed ,nice folding and easy operation .
1. Wallboard rack and Machine running stability is extremely good fast
2. Make various products width as requirement .
3. Equipped with embossing unit to keep the plies together
4. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.
Video Link: https://fjxinyun.en.made-in-china.com
https://fjxinyun.en.made-in-china.com
https://fjxinyun.en.made-in-china.com

Open Size	200*200 mm
Folding size	100*200
Speed	1000 sheets/lin/min
Embossing unit	Steel to steel
Diameter of jumbo roll paper	1200 mm
Power	380V 50Hz

XY-GU-281 Automatic facial tissue log saw cutting machineCyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Video Link: https://fjxinyun.en.made-in-china.com

Designation	Parameter values
The length of unfinished products	minimum 500mm(or, mini 5lines)
The Height of finished product	30~130mm
Speed	80-100 cuts/min
Round blade outer diameter	Φ610mm
Paper width	70~110mm
Cutting Length	70~300mm
Power	11KW 380V 50Hz
Overall size of machine	4600*1700*2500mm
Weight of machine	2500 Kg

XY-GU-388 Automatic facial tissue carton box packing machine
XY-BT-298 Automatic facial tissue soft packing machineXY-GU-26B High speed facial tissue bundle packing machine

Our company
Our Services
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city. Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional manufacturer of:
1)Toilet Paper Machine
2)Facial Tissue Machine
3)Napkin Paper machine
4)Hand Towel Paper Machine
5)Pocket Tissue Machine
6)All kinds of Tissue Paper Cutting and Packing Machine and another Household Paper Equipments Production Line. If you need more information,please feel free contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.
