Cdl Vertical Multistage Fire Pump

Product Description

Aluminum Frame Asynchronous Motor For GLF/CDL/CDLF/SG/SGR/ZW/BLT/WBS/WBZS Stainless Steel Chemical Water Pump
Technical performance data
Motor Model	Power		Speed	Rated Current(A)			Efficiency	Efficiency	Power factor	Rated torque	Max Torque	Rated Current with Rated torque	Noise	Weight
	kW	Hp	r/min	380V	400V	415V	100%	75%	Cos	TLR/Trated	Tmax/Trated	ILR/Irated	LwdB(A)	Kg
Asynchronous Speed 3000RPM/2-POLE 50Hz
63-2	0.25	0.33	2820	0.85	0.8	0.7	68	70.5	0.81	2.2	2.3	6.1	62	10
71-2	0.55	0.75	2800	1.4	1.35	1.32	73	75	0.82	2.2	2.2	6.1	64	12
80M1-2	0.75	1.0	2830	1.7	1.6	1.5	77.5	80.33	0.83	2.3	2.3	6.8	62	16
80M2-2	1.1	1.5	2830	2.4	2.3	2.2	82.8	83.27	0.83	2.3	2.3	7.3	62	17.5
90L-2	1.5	2.0	2840	3.2	3.0	2.9	84.1	84.99	0.84	2.3	2.3	7.6	67	23.5
90L-2	2.2	3.0	2840	4.6	4.4	4.2	85.6	86.35	0.85	2.3	2.3	7.8	67	28.5
100L-2	3.0	4.0	2880	6.0	5.7	5.5	86.7	87.16	0.87	2.3	2.3	8.1	74	38
112M-2	4.0	5.5	2880	7.9	7.5	7.2	87.6	88.80	0.88	2.3	2.3	8.3	77	49
132S1-2	5.5	7.5	2900	10.7	10.2	9.8	88.6	89.87	0.88	2.2	2.3	8.0	79	63
132S2-2	7.5	10	2900	14.3	13.6	13.1	89.5	90.29	0.89	2.2	2.3	7.8	79	70
160M1-2	11	15	2900	20.7	19.7	19.0	90.5	90.66	0.89	2.2	2.3	7.9	81	121
160M2-2	15	20	2930	28.0	26.7	25.7	91.3	91.46	0.89	2.2	2.3	8.0	81	132

Such Series high Efficiency Three-phase Induction Motor in Aluminum housing with high start torque, low noise,
is suitable for air compressors,cheminal pumps, fans, medical equipment. and is with novel appearance and advanced technology,
highly praised by customers.
Basic specifications as below:
Protection Class:IP55. Insulation Grade:F/H. Cooling Way:IC411
Duty:S1,S2,S3 Mount type:B5 flange,B35,B14,B34
Volt:230v/460v,220v/380v,400v,415v,575v 50hz or 60hz

Water supply: water plant filtering and conveying, water supply , supercharging, supercharging of high-rise buildings.
Supercharged industry: fluent water system, cleaning system, high-pressure flushing system, fire fighting system.
Industrial liquid conveying: cooling air conditioning system, boiler feed water, condensing system, machine tool kit, acid and alkalinemedium conveying.
Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator and swimming pool water treatment.
Irrigation: Drip irrigation

Class: Raw water + raw water tank + raw water pump + sand filter + carbon filter + water softener ( optional) + security filter + high pressure pump + reverse osmosis + pure water tank + UV sterilizer (ozone generation) + precision filter + water supply points
II Class: Raw water + raw water tank + raw water pump + sand filter + carbon filter + water softener ( optional) + security filter + high pressure pump + I Class reverse osmosis + high pressure pump + II Class reverse osmosis + pure water tank + UV sterilizer (ozone generation) + precision filter + water supply points

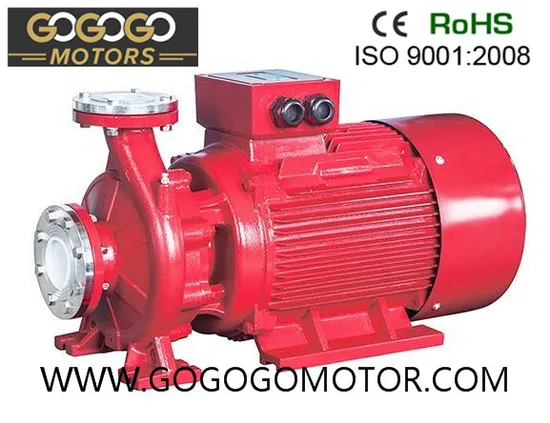

Our PST pump with also such aluminum housing motor
