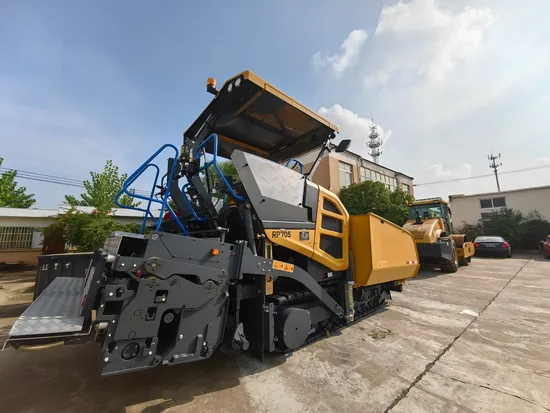

RP705 Asphalt Concrete Paver Machine 7.5m Width Brand New Machine
Basic Info.
Model NO.
RP705
Type
Concrete Paver
Shotcrete Type
Concrete Paver
Machining Process
Concrete Paver
Structure
Concrete Paver
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Basic Pave Width
2.5~4.75
Maximum Pave Width
7.5m
Max Paving Thickness
300mm
Paving Speed
24m/Min
Travel Speed
4km/H
Hopper Capacity
13t
Dimension
6990*2550*3000mm
Transport Package
Shipping
Specification
19800kg
Trademark
China Top Brand
Origin
China
Production Capacity
50000units/Year
Product Description
Product Description* Power System
Such paver is powered by Euro-III diesel engine, featuring low noise and
emission, strong power, high reliability and durability, and powerful fuel adaptability.
* Repairs and maintenances
The integrally openable engine hood and left and right doors make all repair and maintenance points, including all working pumps, control valves, and filter elements, easily accessible.
The centralized lubrication system supplies lubricating grease automatically to bearings of scraper conveyor and spiral.
* Driving/Riding Environment
The control console can be laterally slide and vertically adjusted to meet the actual needs of different operators.
The left and right seats can be rotated to the outer side of machine body and the streamline cab structure provides a good vision.
The large glass fiber reinforced plastic canopy is easily telescopic in both sides to provide a comfortable driving/riding environment.
The canopy and the exhaust tail pipe can be lifted and lowered simultaneously by the manually-operated hydraulic pump to improve the maneuverability and comfort of the operator.
Detailed Photos
Product Parameters
| Rated Power | 115kw/2000rpm |
| Basic Paving Width | 2.5-5.0m |
| Max Paving Width | 7.5m |
| Max Paving Thickness | 300mm |
| Paving Speed | 24m/min |
| Travel Speed | 4km/h |
| Hopper Capacity | 13t |
| Laydown Rate | 600t/h |
| Total Weight | 17.5t |
| Dimension | 6990*2550*3000mm |
