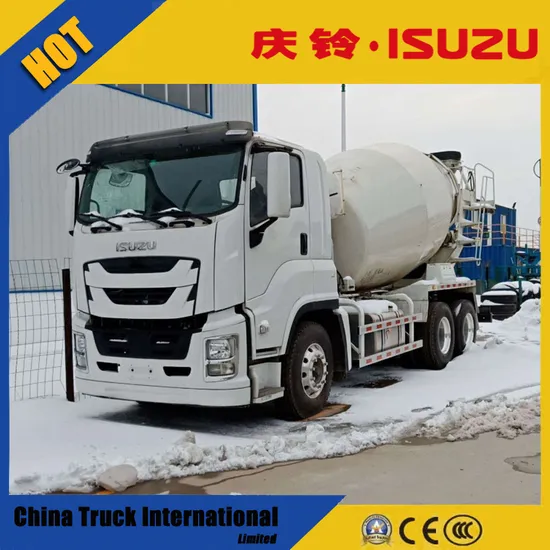

Construction Equipment Chassis Giga 10m3 350HP Concrete Construction Truck
| US$60,000.00-69,000.00 | 1 Piece (MOQ) |
Basic Info.
Emission Standard
Euro 5
Displacement
9.8L
Payload
22.5t
Fuel
Diesel
Drive Mode
6x4
Maximum Horsepower
300-400hp
Condition
New
Engine
6wg1-Tcg51
Cylinder No.
6
Transmission
Zf8s2030to
Wheelbase
3985+1370mm
Tire Size
315/80r22.5
Power Steering
Yes
ABS
Yes
Free Maintenance Battery
Yes
Curb Weight
15000kg
Gvw
37500kg
Transport Package
Nude Packing
Specification
ISO, TS16949, CCC
Origin
China
HS Code
8704230000
Production Capacity
1000PCS/Month
Product Description
Construction Equipment Chassis Giga 10m3 350hp Concrete Construction Truck1.Product Description:
| Model | QL5250U1QDZY | ||
| Dimensions | Length (mm) | 9350 | |
| Width (mm) | 2560 | ||
| Height (mm) | 4050 | ||
| Wheel Base (mm) | 3985+1370 | ||
| Weight | Vehicle Curb Weight (kg) | 15000 | |
| GVW (kg) | 37500 | ||
| Max loading capacity (kg) | 22500 | ||
| Performance | Max. Speed (km/h) | 95 | |
| Max. Grade Ability (%) | 30 | ||
| Min. Ground Clearance (mm) | 314 | ||
| Core Equipments Specifications | |||
| Engine | Model | 6UZ1-TCG51,350HP,EURO-V,9.8L | |
| Rated Power (HP/KW) | 350HP/257KW | ||
| Type | Diesel 6-cylinder in line, 4-stroke, water cooling, with turbo charging and inter-cooling | ||
| Transmission | Model | ZF8S2030TO | |
| Type | Manual | ||
| Speed | 8F & 1R | ||
| Front Axle | Type | F075 | |
| Load(kg) | 7500 | ||
| Rear Axle | Type | R210 | |
| Load(kg) | 21000 | ||
| Speed Ratio | 5.571 | ||
| Suspension | Type | Leaf spring | |
| Brake System | Type | Drum | |
| Service | Dual-circuit air | ||
| Parking | Spring | ||
| Standard Equipments Specifications | |||
| Driver's Cab. | Type | GIGA Flat roof cab, 2 seats+1 bed, | |
| Equipment | central lock,electric glass,ABS | ||
| Air conditioner | Air condition | ||
| Fuel Tank | Capacity (L) | 600, Aluminium Alloy | |
| Wheel&Tire | Type & Size | 315/80R22.5 OR 12.00R22.5 for option,11 PCS | |
| Mixer tank | DRUM | Geometric Volume ( m³) 16.77 | |
| Mixing Volume( m³) 10 | |||
| Stuffing Ratio(%) 59.63 | |||
| Feeding Speed ( m³/min ) ≥3 | |||
| Discharging Speed ( m³/min ) ≤2 | |||
| Discharge Residue(%) ≤0.2 | |||
| Slump Scope(mm) 50-220 | |||
| obliquity(°) 12 | |||
| HYDRAULIC SYSTEM | MOTOR | EATON | |
| PUMP | EATON | ||
| REDUCER | EATON | ||
| Color | According to client's request | ||
2.More Photos of Mixer Truck:
3.Company information:
China Truck International Limited specialized in all kinds of modified vehicles of truck chassis.With a professional service. We are committed to providing not only high quality special trucks but also spare parts and technical support to customers.
4.FAQ
Q. What is your terms of shipment?
A: Generally, trucks are always by container, bulk cargo vessel, ro-ro etc. spare parts are packed in wooden cases, shipped by
containers.
Q: Do you provide customized service?
A: Yes, we offer customized service as you needs for the performance , included special requirements .
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products before you pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
