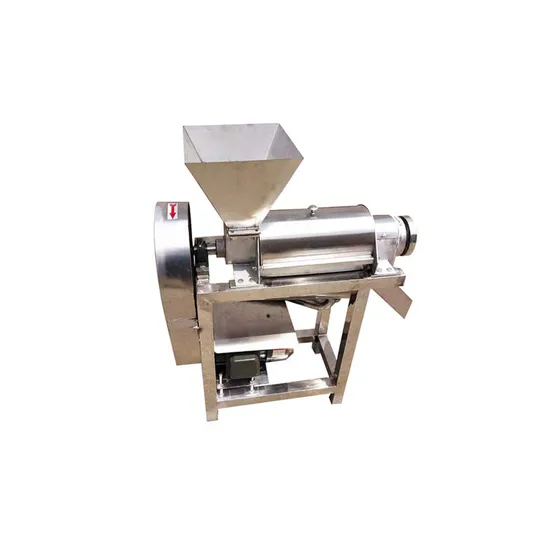

1t Spiral Fruit and Vegetable Juicer Machine for Food Processing

Product Description

Model	HLXW-LX-1T
Main motor power	3kw
Output	0.8-1t/h
Spiral diameter	125mm
Filter size	0.6mm
Voltage	380V
Frequency	50HZ
Texture of material	stainless steel
Cleaning temperature	normal temperature
Weight	150kg
Dimensions	1000*440*1100mm

Descriptions:
Fruit and vegetable juicer, also known as spiral juicer, is suitable for beating and separating a variety of fresh fruits and vegetables. It can make fruit sauces for fruits, such as orange meat, grapes, kiwi, mulberry fruit, red bayberry and honey peach (de nucleated), separate the fruit stones, fruit seeds and peel, and also make vegetable juice from green vegetables (cut), tomatoes, peppers and celery (cut), and separate the vegetable tendons. It is an ideal machine for making jam, fruit juice and vegetable juice, It is an important equipment for food processing enterprises.
Feature:
1.Advanced design, compact structure, elegant appearance.
2.Automatically finish the processes of juicing and slagging for fruits and vegetables,such as berries and pome fruits etc.
3.Using conical screw, large capacity, high rate of juice.
4.Easy to operate, safe and hygienic,high efficiency, low noise, no pollution.
5.With material contact parts made of food grade stainless steel.
6.Suitable for fruit and vegetable processing plants, restaurants, hotels, canteens, pharmaceutical processing plants, etc.
Working principle:
The main component of this equipment is the spiral, which gradually increases the bottom diameter along the direction of the slag outlet and decreases the pitch. When the material is pushed forward by the spiral, the volume of the spiral cavity decreases, forming a pressure on the material. The rotation direction of the spiral spindle is clockwise when viewed from the feeding hopper towards the slag groove. The raw materials are added to the feeding hopper and pressed under the push of the screw. The squeezed juice flows into the bottom juice container through the filter screen, while the waste is discharged through the gap formed between the screw and the conical part of the pressure regulating head. The movement of the pressure regulating head along the axial direction can adjust the size of the gap. When transferring the handwheel bearing seat clockwise by hand (looking from the slag discharge groove of the equipment to the feeding hopper), the pressure regulating head should be turned to the left, and the gap will be reduced. Otherwise, the gap will become larger. Changing the size of the gap, that is, adjusting the resistance of the residue, can change the juice yield. However, if the gap is too small, under strong compression, some of the residue particles will be squeezed out together with the juice through the filter screen. Although the juice yield increases, the quality of the juice will relatively decrease. The size of the gap should depend on the specific process requirements of the user.
1.Are you a factory or a trading company?
Both, we export to many countries with more than 10 years history and 15 years of experience in foreign trade. We provide OEM and ODM services.
2.How long is your Warranty?
All our products come with a standard one year warranty on vulnerable parts. As well, we will provide 1% quantity Vulnerable parts along with the container.
3.What is your payment method?
T/T (30%TT in advance, 70% TT in balance before shipment)
4.How can l know your machine works well?
Before delivery, we shall test the machine working condition for you.
5.What should l do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have a professional after-sales team to solve any problems for customers.
6.Can you guarantee your quality?
Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
