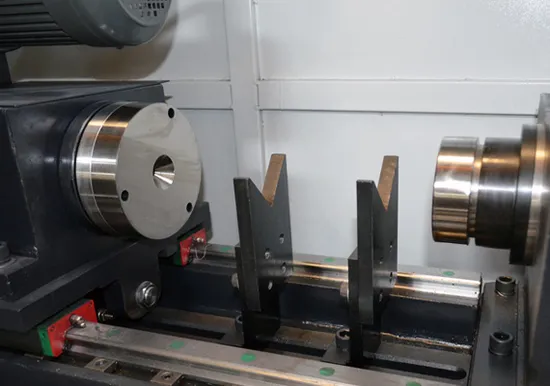

CNC Gun Drilling Machinery (ZJZ1000)

Product Description

ZJZ SIINGLE AXIS DRILLING MACHINE is designed and developed for processing bar shaft products. uniaxial biaxial, four axis are optional according to use's demand. three jaw chunk or elf drive cone disc are adopted, toprovide the most appropriate solutions to users.
Product application
Deep hole drilling machines are mainly used in the industries as following:
Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump,etc..
-Automotive industry: cylinder, fuel supply system and other parts
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.

ITEM		ZJZ1000
Processing capacity	Machining aperture range	Φ4~φ30mm
	Maximum drilling depth	1000mm
	The maximum length of workpiece	1100mm
spindle	Qty.of spindle	1
	Spindle centerline spacing	200mm
	Maximum speed of spindle	4500rpm
	Spindle centerline spacing	100mm/min
	Spindle fast moving speed	1000mm/min
power	Swpindle motor	7.5kw
	Total power	18kw
Cooling system	Pressure range of cooling liquid	2~10mpa
	Flux range of cooling liquid	0~200l/min
Machine tool	Floor area of machine tool(length*width)	4800*2800*1900mm
	weight	7Ton

Company Profile
Nanyang Zonjet CNC Technology Co., Ltd, located in Nanyang City, Henan Province, is one of the most important industrial projects in Nanyang. It is a garden style modern factory, covering an area of 5,000 square meters, including 3,000 square meters for productive land. There are 2 production bases in Nanyang, Henan and Dongguan, Guangdong. Integrating product development, manufacturing, customer service and all the resources, there is a core value system of full rage of service in Zonjet.
Zonjet CNC Technology Co., Ltd, focusing on area of CNC deep-hole drilling, has been developing in a high speed since established, and Zonjet has become a very effective brand name in the industry. Taking the need of customers as direction for product design and positioning, the function and specification of our products meets the demands of all users in different areas. Customizing products also creates the highest economic benefits for users. Main products: three-axis CNC deep-hole drilling machine tool, four-axis multifunctional deep-hole drilling machine tool, five-axis drilling and milling center, six-axis drilling and milling machine tool, tube plate machine tool, shaft deep-hole drilling machine tool and other deep-hole drilling machine tools for special industries.
