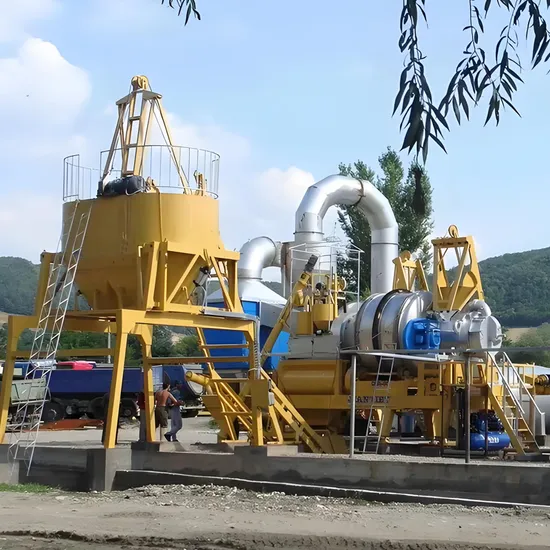

Mobile Asphalt Plant Bitumen Asphalt Mixing Plant for Sale

Product Description

Product Description

Mobile Asphalt Plant Bitumen Asphalt Mixing Plant Asphalt Batching Plant for sale

Mobile Asphalt Plant Bitumen Asphalt Mixing Plant is a kind of equipment that mixes stone, asphalt and mineral powder according to a certain proportion to produce asphalt mixture. Compared with the stationary asphalt mixing plant, the unique walking system makes the transition more convenient.The components and workflow of a mobile asphalt plant are basically the same as those of a stationary asphalt mixing plant.
Detailed Photos

First, use the loader to load the cold aggregates of different specifications into the collecting hopper respectively. After the primary weighing, the qualified materials are transported by the belt conveyor to the drum dryer for heating and drying.
During the drying process, the dust and moisture contained in the cold aggregate are sucked into the bag dust collector.
The hot aggregate heated by the drum dryer passes through the hoist to the vibrating screening system above the mixing building. They are screened into different specifications by the vibrating screen, and then respectively enter the storage hopper below. Afterwards, according to different ratios, they are put into the weighing device in turn and re-weighed.
The mineral powder is transported to the temporary storage hopper through the powder elevator, and then to the weighing device for weighing. At the same time, the bitumen is sent to the bitumen metering device through the pipeline for weighing.
Later, put the weighed aggregate, mineral powder and asphalt into the twin-shaft mixer in turn for mixing. When the specified time is reached, open the discharge door of the mixer. And put the evenly stirred mixture into the finished product warehouse. Finally, the mixture is put into the dump truck and transported to the construction site.

Features
1. The integrated design of intermittent drying drum and twin-shaft mixer ensures more thorough mixing and better quality of finished products. 2. The drying drum rotates clockwise for drying and counterclockwise for discharging. The overall structure is simple and easy to operate. 3. PLC programmable centralized control, touch screen operation, automatic and manual switching is free. 4. The mobile chassis structure makes transportation and installation faster and more convenient. 5. Coal-fired and oil-fired dual-purpose combustion furnaces can be selected according to customers' requirements.
Product Parameters

Product Name		Mobile Asphalt Plant Bitumen Asphalt Mixing Plant
Model		LQY10	LQY15	LQY20	LQY30	LQY40
Total Power(kw)	Diesel	41.5	54	63.5	104.5	125
	Coal	57.5	75	86.5	127.5	169
Aggregate Batching Hopper(m3)		3m3 x 3	3m3 x 3	3m3 x 3	5m3 x 3	5m3 x 3
Finished Product Storage Hopper(t)		3	5	5	9	9
Feeding Material Hopper Capacity(kg)		500	750	1000	1500	1800
Drying Drum Rotation Speed(r/min)		18	18	16	16	16
Finished Product Temperature(ºC)		120-180, adjustable
Fuel Consumption	Oil	5-7.5kg/h
	Coal	13-15kg/h
Working Cycle	3min

Application
Compact structure, less land occuption;
Low initial investment, highly cost-effective;
Convenient for transporation and mobilization;
Cold aggregate bins equiped with weight sensors and variable frequency motors;aggregate feeding rate is remote controlled, adjustable and precise;
Drying drum have functions of drying, heating and mixing, low heat loss;optimized inner structure, fast heating and well mixing.
