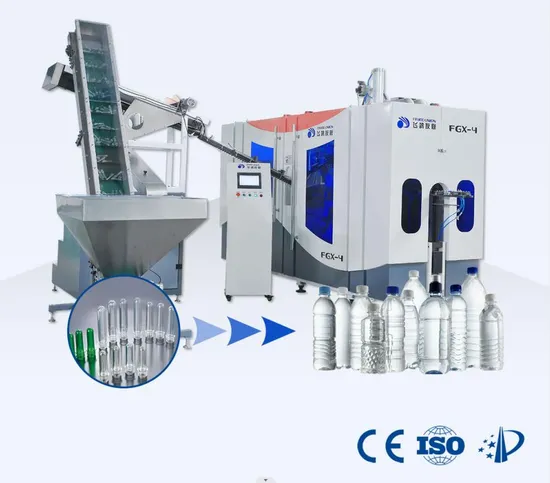

Fully Automatic High Speed Liner Plastic Pet Bottle Jar Can Blow Molding Machine 2~20 Liter Juice Milk Tea Drinking Water Bottles Blowing Making Equipment Price

Product Description

Product Introduction
Faygo union Fully Automatic High Speed Liner Plastic Pet Bottle Jar Can Blow Molding Machinery 2~20 liter Juice Milk Tea Drinking Water Bottles Blowing Making Equipment Price
Faygo automatic PET bottle blowing machine is high-speed linear blowing machines. The single cavity speed can reach 1800 BPH and 4 cavities is 7200BPH, 8 cavities can reach 16000BPH. which is reach capacity of European machine. It is developed totally independently, has our own intellectual property rights, and has obtained more than 13 national patents.
This Bottle Blow Moulding Machine mainly produces PET plastic bottles, pure water, mineral water PET bottles, and beverage bottles.
PET blowing machine adopt servo driving and cam linked movement, which provide more stable running and less noise. With new design, it has more compact structure, less consumption of electricity, water and air. It is the ideal bottle making equipment for beverage enterprises. Product Parameters
Detail specification of FG Series PET bottle blowing machine

Model			FG4	FG6	FG8	Remark
Mold number(piece)			4	6	8
Capacity(BPH)			6500~8000	9000~10000	12000~13000
Bottle specification	Max volume(mL)		2000	2000	750
	Max height(mm)		328	328	328
	Round bottle max diameter(mm)		105	105	105
	Square bottle max diagonal(mm)		115	115	115
Preform specification	Suitable inner bottle neck(mm)		20--25	20--25	20--25
	Max preform length(mm)		150	150	150
Electricity	Total installation power(kW)		51	51	97
	Heating oven real power(kW)		25	30	45
	Voltage/frequency(V/Hz)		380(50Hz)	380(50Hz)	380(50Hz)
Compressed air	Pressure(bar)		30	30	30
Cooling water	Mold water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6--13	6--13	6--13
	Oven water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6-13	6-13	6-13
Machine specification	Machine dimension(m)(L*W*H)		3.3X1X2.3	4.3X1X2.3	4.8X1X2.3
	Machine weight(Kg)		3200	3800	4500

Main electrics
Pneumatic part& Cylinder	Valve			GERMAN FESTO
Electric part	PLC			JAPAN Mitsubishi
	Servo System			JAPAN Panasonic
	Frequency inverter			JAPAN Mitsubishi
	Operating system			JAPAN Mitsubishi
	Touch screen			JAPAN Mitsubishi
Blowing	Valve			JAPAN Parker
One-way Valve				GERMAN FESTO
Throttle Valve				GERMAN FESTO
Reducing Valve				GERMAN DURAY

Note: All the electrical components adopts CE,UL,CCC approved international advanced high-tech product

Product Details

Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement.
equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
Small performs distance heating system:
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
Efficient and soft perform inlet system:
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protecte
Modularized design conception:
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
Other related equipment for FG-4 PET blowing machine:
Exploded bottles ejection unit:
During the blowing process, if the bottle burst, bad bottles can be automatically removed.
This prevents the bad bottles from entering the filling machine.
HP air recovery system:
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.

Oven and preform temperature detection system:
Detection system detects temperature of oven and the temperature of performs.
When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
Equipped with remote monitoring system:
Engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile ,feedback will informed to the client's site if something abnormal ,give the machine 24 hour'baby care in the cradle.
Our Service
1> The machine will be tested and checked at our workshop before delivery.
2>After one year, we will supply accessories are provided only one the cost price.
3> Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part.
4>Free production technology and process configuration.
5> We can help you to design the product line, workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $100/day during the engineer's journey.
7>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
Faygo 4 6 8 Cavities Full Automatic 500ml-2L Plastic Pet Bottle Blowing Moulding Machine Water/Beverage/Juice Bottle Making Machinery Company Profile

Jaingsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Welcome to visit our company, and make win-win cooperation in the future.
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
