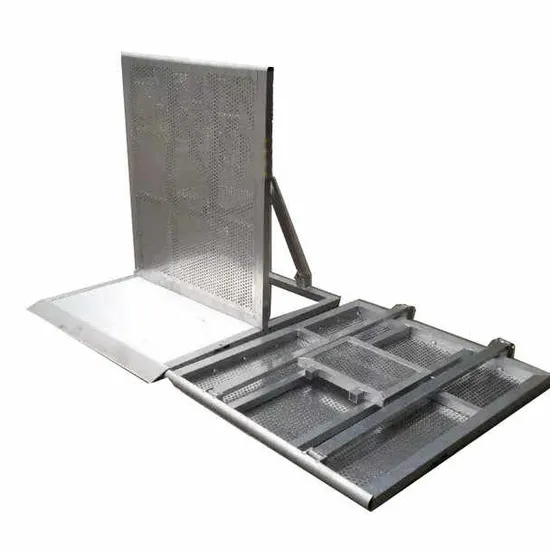

Aluminum Alloy Folding Crowd Control Barricade Crash Barricade Barrier

Product Description

Aluminum stage barrier * Material:Aluminium Alloy Advantage of aluminum barrier:
* Bright and beautiful appearance
* Easy to assemble and disassemble.
* Various applications
* Light weight and easy to carry
* OEM / ODM is welcome. Product DescriptionAluminum Alloy Crowd Barricade Stage Barrier

Common Specifications of stage barrier:
Panel Size	1200mm x 1000mm x 1200mm (L*W*H)
Folding Size	1200mm x 1000mm x 140mm
Weight	22kgs
Package	Cartons
Special specifications can be customized.

Detailed ImagesThe Aluminum Barrier is a lightweight crowd control system made of aluminum. The Barrier has a self-weight of only 34 kg
per 1 m section. The smooth round top bar and the bottom bar inside of slop incorporate a steel 15 mm slot pin that
provides easy connection points for the Barriers. In order to strong the barricade connection, there are also 2 sets interlock
and 2 sides bolt connection in case of uneven ground . All profiles have soft, rounded edges for maximum comfort.
The design load of the barrier is 10528N/m1.
The Barrier folds flat after use and can be stacked in trolley for easy transportation and storage. Apart from the standard
1 m sections, the Barrier can be delivered featuring several corner types, cable through and door barrier. Furthermore,
Our barricade can deliver the Barrier featuring your own logo upon request.
Technical specifications of Barrier:

Dimension	1m(Length) x 1.24m(Width) x 1.12m(Hight)
Material	Aluminum Alloy 6061-T6
Front Panel Thickness	4mm, with antiskid panel trace
Frame	50x38x2mm(thickness)
Foot Board	(L)405X(W)300X3mm thickness
Perforated Mesh	3mm thickness
Folding Size	1mx1.24mx120mm
Connection Way	Quick Lock and Bolt Nut
Shape	Standard barrier, High barrier, Gate Barrier, Corner Barrier 45-135 degree, Access Void Barrier, Road barrier
Order Code	Bar-01, Bar-02, Bar-03, Bar-04, Bar-012, RB-100/200

Features :Extended foot board to make the barriers more stable Each set connect each other to be strongerCorner angle is adjustable to be suitable for actual sitesRamp on front board to prevent tripping accidentSmaller holes on front board to prevent hurting fingers SgaierTruss Manufacturing Mojo Barrier(Concert Barrier) are Made by High Quality Aluminum ,The Surface of barrier smooth as silk,polishing,and attractive eyes .Application & Features Our Advantages1. 20-year's experience in truss and stage industry.2. Customers from more than 200 countries. 3. We have a workshop, covering 20000SQM.. 4. Professional engineers offer technical support to customers and completely after-sale service5. We offer bottom price in detail listed.6. We have stock goods for an urgent order.7. Strict quality control through out the whole production8. We accept OEM stage and truss design.9. Choosing Shinestage, We won't let you down because of the quality is our culture.
Company Profile
FAQQ: Are you a trading company or the professional manufacturer?A: We are the professional manufacturer.Q: Can you provide OEM service?A: Yes, we can.Q: Do you provide a sample?A: Yes, of course.Q: Do you have any certificate?A: We have CE, ISO and TUV.Q: What's the warranty of your products?A: 5 years for auditorium chairs, telescopic bleacher and stadium chairs. During this period, if any damage caused by non-artificial fault, we will provide the replacement spare parts, otherwise there will be a charge for those spare parts.Q: What's the delivery time?A: It's about 20-40 working days according to different quantities.Q: Can you provide the CAD drawings?A: Yes, we can make the plan for the clients according to the dimension and requirements.
