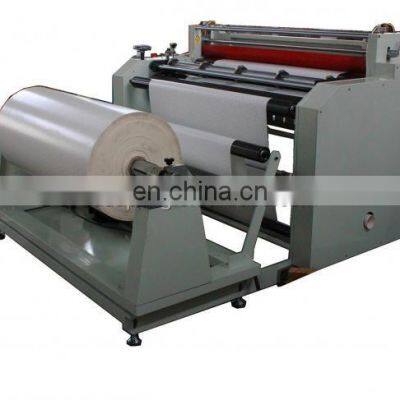

Film/Paper/Label/Foam/Nonwoven Fabric Cross Cutting Machine Roll to Sheet Cutting

Product Description

Product Description
PP PE Non Woven Fabric Roll to Sheet Cutting Machine with Slitting Function Functional characteristics:1.Magnetic powder brake control the unwinding tension.2.Rectification system to make the material in line.3.DELTA servo motor pull the material,high precision.4.MITSUBISHI PLC with touch screen to set any length,quantity,speed. 5.3 inch inflatable shaft for unwinding.6.20mm thickness steel wall make machine run stable.7.Pulling roller coat thick PU rubber and won't scratch the material.8.Polished and anodized aluminum guiding roller,very smooth and never harm the material.9.SKD11 cutting blade can use very long time and cut the sheet with perfect edge at cutting part. 10.Standard 8 rotary blade for slitting function.11.Other standard machine:360mm,500mm,600mm,800mm,1000mm. Purpose:This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc. Technical data: ModelDP-1400Max Feeding Width ( mm )1400Max unwind roll diameter(mm )800Slitting width(mm )25-1400Unwind shaft diameter3 inch Cut 100mm speed ( times/minute )80 Total Power5kwPLCMITSUBISHIServo Motor Servo Driver DELTA Precision ( mm )±0.10 Voltage220V 50HZ Electrical listing: Touch ScreenKUNLUNTONGTAIMade in ChinaProgrammable ControllerMITSUBISHIMade in JapanServo DriverDeltaMade in TaiwanServo MotorDeltaMade in TaiwanMotor of cutting knifeSHENLIMade in ChinaAC ContactorCHNTMade in ChinaSolid State Relay 20AGOLD ELECTRICAL CONTROL Made in China Pictures: Roll to sheet cutting machine without slitting function:
