Product Description

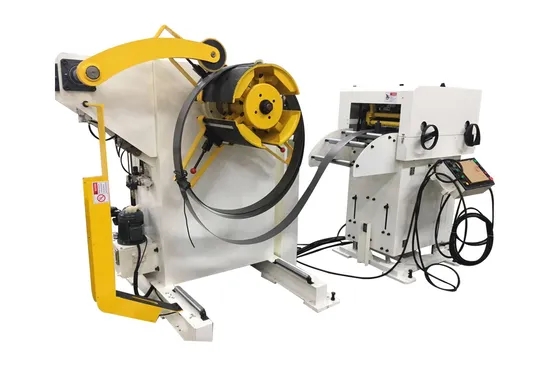

Customized Coil Sheet Automatic Press Nc Servo Feeders Straightener Uncoilers Machine 3 in 1 Decoiler Straightener Feeder for Making Electric Part
Uncoiler straightener feeder is in the short space design were especially developed to meet the needs of customers with not enough space. They offer process reliability even for the most demanding materials. They are optimally suited for the manufacture of structural parts as well as for processing of high-strength materials - even for the higher ranges of strip thickness.
By combination of straightener and roll feed into one machine, so called feeder-straightener, which is positioned directly at the press, the needed space for material loop of straightened material can be saved.
The feeder-straightener is supplied with material out of a (in comparison) very small loop of not straightened material below the decoiler.
The decoiler is equipped with a variable speed drive as well as with a very sensitive loop control. By this way it is assured that there always will be enough material available for supply of the feeder-straightener.
In case that feeding lengths and stroke rates do require a bigger material stock within the material loop, the Coil Feeding Line will be completed with a loop pit.

SUNRUI Auto Feeder 3 In 1 is suitable for all kinds of automobile stamping, appliances manufacturing, computer and electronic componets, hardware and metal parts etc industry.

The future of Auto Feeder 3 In 1
1. High accuracy :+/- 0.1mm.
2. Save plant area.
3. Japan servo motor , PLC and other electrical parts,long using time.
4. Easy operation, safe and high stability. Specification

Model	MFL2-400	MFL2-500	MFL2-600	MFL2-800
Stock Width(mm)	50-400	50-500	50-600	50-800
Stock Thickness(mm)	0.3-3.2
Max.Coil Weight(kg)	3000	3000	5000	5000(7000)
Max.Coil O.D.(mm)	1200
Coil I.D.(mm)	φ470-520
Feed Length(mm)	~500*
Max. Line Speed(m/min)	16-24
Straightener Rolls(pieces)	φ48mm*11 (upper 6/ lower 5)			φ68mm*7(upper4/ lower 3)
Feed Rolls (set)	φ68mm*2 (upper 1/ lower 1)			φ88mm*2 (upper 1/ lower 1)
Main Motor	AC2.9	AC2.9	AC2.9	AC4.4
Mandrel Expansion	hydraulic
Unoiler Motor(kw)	1.5	2.2	2.2	2.2(3.7)
Power(V)	3 Phase 220V/380V/440V/50HZ
Operating Air(Mpa)	0.49

Straightener Capacity( Yield strength σs≤245N/mm² ,Tensile strength σb≤392 N/mm²)
Model		Thickness(mm)
		0.3~1.4	1.6	1.8	2	2.3	2.8	3.2
Coil Width(mm)	MFL2-400	400			300	230	150	110
	MFL2-500	500	400	360	300	230	150	110
	MFL2-600	600	470	360	300	230	150	110
	MFL2-800	800	470	360	300	230	150	110

Remark:1)The above figures are the material having yield strength σs=245N/mm² ,Max. tensile strength σb=392 N/mm²)2)Specifications are subject to change for improvement without notice.
Pictures
Auto Feeder 3 In 1 is suitable for automobile stamping, appliances manufacturing, computer and electronic componets, hardware and metal parts etc industry.Automotive Parts: Bracket, Damper, Barke Pad, Tie Bar, Electric Accessory, Shell Parts Of Printers, Computer Frame,Slide Rail of Car Seat, Splash Shield of car body and etc.

Compact decoiler straightener feeder machine is working in customer's factory.
FAQ
1. What's payment terms?
SUNRUI MACHINE receives T/T payment and LC at sight when the amount over USD15000.00. 2. What's your coil equipment leading time?
For standard decoiler, straightener or feeders, the usually lead time is about 10-25 workdays, but we usually have machines in stock. Please contact with our sales if you need the coil handling equipment urgently. For compact coil feed lines or whole metal stamping lines, it needs 30-70 workdays depends on different specifications and production plan in our factory. 3. What's warranty time of your machine? Usually the warranty time is 12 months. Also the warranty time can be extend acorrding the specific requirements. 4. What after-sales service does SUNRUI provide? For the standard decoiler straightener feeder machine, it's easy to install and debug it, most of our customers can do it by themselves; And what's more, our technical engineer can teach your operators how to install and operate it. SUNRUI machine on-site training will avoid operational problems that are easy to occur at the beginning of production. The training after sales service will create more value for your employees. For the compact coil feed machine and complete metal stamping line, SUNRUI can arrange engineers to go overseas for the coil handling equipment installation. They guide the customer's operators on-site. Then the commissioning phase will smoothly enter into the mass production phase. 5. What's the package of your coil feeding machine? For standard small decoiler, straightener, feeder which go LCL shipping, SUNRUI machine will use plastic films cover the equiment, and then fix it into a woodencase. For the coil feed lines and complete line which go FCL shipping, SUNRUI machine will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Here with some pictures for your reference.
