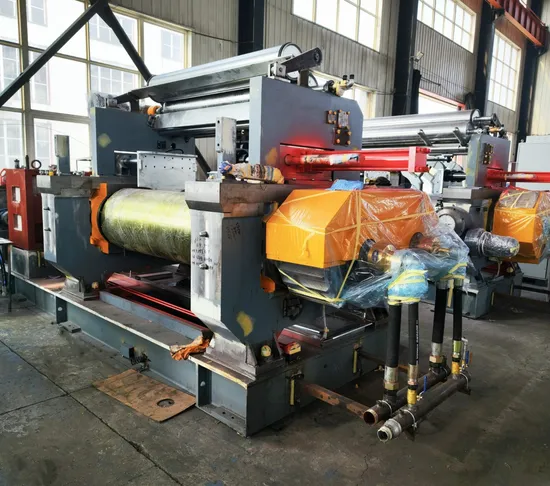

Strong Quality Xk-450 Xk-550 Open Mixing Mill /Two Roll Rubber Mixer
| US$19,999.00 | 1 Set (MOQ) |
Basic Info.
Control Type
PLC
Automatic Grade
Automatic
Power Source
Electric
Type
Two Roll Mill Machine
Condition
New
Place of Origin
Shandong, China
Showroom Location
None
Diameter of Roll(mm)
400 mm
Roll Ratio(Front/Back)
1:1.27
Warranty of Core Components
1 Year
Video Outgoing-Inspection
Provided
Applicable Industries
Manufacturing Plant
Key Selling Points
Long Service Life
Core Components
PLC, Motor
Cooling Mode
Water Cooling
Length of Roll(mm)
1000 mm
Machinery Test Report
Provided
Origin
Shandong
Product Description
Strong Quality XK-450 XK-550 Open Mixing Mill /Two Roll Rubber Mixer Product Description Features:1).Hardened gears reducer ,low noise ,high quality ,competitive price
2).The machine main uses are following in rubber product factory: Natural rubber refining, raw rubber and compound mixing. Rubber beating, mixing and rubber tab letting.
3).This machine is double roller opening to be used for rubber mixing. It consists of seat, Frame, Rubber, Driving device, Lubricator and cooler, range adjusting device of roller. Safety brake, Motor and reducer, etc.
4).The roller is made from safety cooled and hard cast steel, smooth surface is polished. in term of different case. Saturated steam and cooling water can be inputted in the empty roller to adjust speed of roller. Colloidal particles are drawn into the gap of the two rollers which make relative rotation in different velocity to mix rubber
Product Parameters
| Model | XK-160 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 |
| Working diameter of rolls(mm) | 160 | 250 | 300 | 360 | 400 | 450 |
| Working length of rolls(mm) | 320 | 620 | 750 | 900 | 1000 | 1200 |
| Working linear speed of front roll(m/min) | 9 | 15.1 | 15.73 | 16.25 | 18.65 | 24.5 |
| Speed ratio of front and rear roll | 1:1.35 | 1:1.1 | 1:1.17 | 1:1.25 | 1:1.27 | 1:1.27 |
| Max. gap (mm) | 4.5 | 7 | 10 | 10 | 10 | 10 |
| Max. Capacity per batch(kg) | 1-2 | 10-15 | 10-20 | 20-25 | 18-35 | 25-50 |
| Driving motor power(kw) | 5.5 | 18.5 | 22 | 37 | 45 | 75 |
| Overall size(L*W*H) mm | 1080*796*1415 | 3400*1350*1500 | 3580*1550*1695 | 3940*1780*1740 | 4200*1850*1870 | 5200*2380 *1770 |
| Around weight(tons) | 1.1 | 3.5 | 5.2 | 6.5 | 7.6 | 12.0 |
| Model | XK-550 | XK-560 | XK-610 | XK-660 |
| Working diameter of rolls(mm) | 550 | 560/510 | 610 | 660 |
| Working length of rolls(mm) | 1530 | 1530 | 2000 | 2130 |
| Working linear speed of front roll(m/min) | 22.5 | 30 | 28.6/25.8 | |
| Speed ratio of front and rear roll | 1:1.2 | 1:1.2 | 1:1.098 | 1:1.24 1:1.09 |
| Max. gap (mm) | 15 | 15 | 15 | 15 |
| Max. Capacity per batch(kg) | 50-65 | 50-65 | 90-120 | 100-150 |
| Driving motor power(kw) | 110 | 110 | 160 | 180/250 |
| Overall size(L*W*H) mm | 6320*2180*1880 | 6500*2300*2000 | 6475*3146*2035 | 7465*3662*2750 |
| Around weight(tons) | 22 | 22 | 34.5 | 43/47 |
