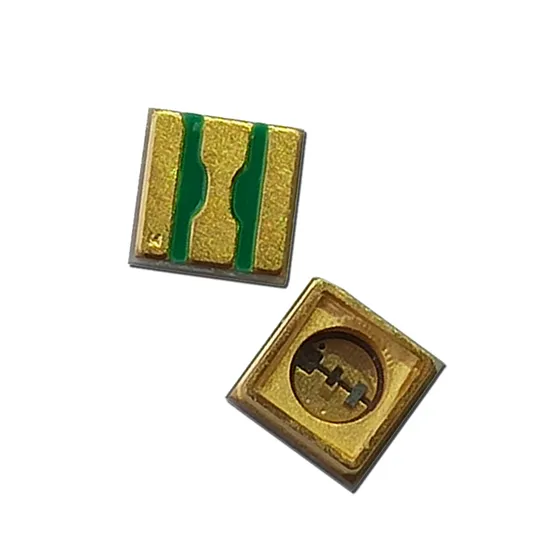

LED UVC 270nm 275nm 280nm 3535 SMD Diode 0.2W 0.3W 0.5W 1W 3W 5W

Product Description

Specifications:
1. Shapes: square
2. Wavelength(nm): 270-280NM
3. DC forward voltage (VF): 5-7V
4. Lens : 120degree Quartz lens
5. Life Span: 10,000 Hours
6. With RoHS & CE Approved
7. Beam angle: 120 degree
8.Forward Current: 0.2W 20-40MA/0.5W 40-100MA/1W 100-150MA/3W 350-500mA/5W 500-700MA
9.size:3.5*3.5*1.5mm
(UVC 270-280NM)Applications :
1. Surface sterilization: medical appliances, maternal and infant supplies, smart toilet, refrigerator,tableware cabinet, fresh-keeping box, smart trash can, Thermos Cup, escalator, hand and ticketmachine buttons and other high-frequency public contact surfaces;2. Still Water Sterilization: Drinking Water tank,humidifier, ice machine;3.Mobile Water Sterilization: Mobile Water S
terilization Module, Direct Drinking Water Machine;4. Air Sterilization: Air Purifier, air conditioning;5.Industrial Applications: Medical phototherapy,fluorescence spectrum detection, optical sensors,biological analysis/detection, anti-counterfeit detection, etc.
3535(270-280NW 5-7V) Reflow temperature 170-230 ºC

Dimension	3.5x3.5*1.5mm
Power Consumption	0.2W/0.5W/1W/3W
Peak Wavelength	270-280NM
Radiant Flux	0.2W 3-5MW/0.5W 10-18MW/1W 20-30MW/3W 30-50MW/5W 70-100MW
Spectrum Half Width	10NW
Forward Current	0.2W 20-40MA/0.5W 40-100MA/1W 100-150MA/3W 350-500mA/5W 500-700MA
Application	Water sterilization, Medical Equipment,fluorescence spectrum detection, optical sensors.
