Product Description Characteristic of Sgr High Efficiency, Low Noice Cone Worm Series Worm Gearbox : In a Worm Gearbox, Worm Reduction Gear Box, Worm Speed Reducer and Gear Motor Manufacturer, three to eleven gear teeth are typically in contact with the worm, depending upon the ratio. The increased number of driven gear teeth that are in contact with the worm significantly increases torque capacity also raises shock load resistance. In addition to increasing the number of driven gear teeth in contact with the worm, Worm Gearbox, Worm Reduction Gear Box, Worm Speed Reducer and Gear Motor Manufacturer also increases the contact area on each gear tooth. The actual areas of instantaneous contact between the worm threads and the driven gear tooth are lines. These lines of contact move across the face of the gear tooth as it progresses through its total time of mesh with the worm. The lines of contact in double-enveloping worm gearing are configured to increase the power transmission capability and reduce the stress on each gear tooth.

Datasheet on CUW double enveloping worm gear reducer :

Model	ShaftDia. (mm)	Center Height (CUW)	(CUW) Output shaft Dia.	Power	Ratio	Permitted Torque	Weight
	(CUW) input Solid(h6)	(mm)	(mm)	(kw)		(Nm)	(KGS)
100	28	190	48	1.41~11.5	10 .25~ 62	683-1094	42
125	32	225	55	2.42~19.7	10 .25 ~ 62	1170~2221	65
140	38	255	65	3.94~25.9	10 .25 ~ 62	1555 ~ 3473	85
160	42	290	70	4.39~35.7	10 .25 ~ 62	2143 ~4212	120
180	48	320	80	5.83~47.5	10 .25 ~ 62	2812 ~ 5387	170
200	55	350	90	7.52 ~61.2	10 .25 ~ 62	3624 ~6859	220
225	60	390	100	9.9~81.4	10 .25 ~ 62	4872 ~ 9224	290
250	65	430	110	12.9 ~105	10 .25~ 62	6284~11892	380
280	70	480	120	16.9 ~ 138	10 .25 ~ 62	8347 ~ 15820	520
315	75	530	140	22.5 ~183	10 .25 ~ 62	11068~ 19450	700
355	80	595	150	30~245	10 .25 ~ 62	14818 ~28014	1030
400	90	660	170	32.1 ~261	10 .25 ~ 62	15786~29918	1400
450	100	740	190	42.6 ~347	10 .25 ~ 62	20998~39881	1980
500	110	815	210	54.9 ~ 448	10 .25 ~ 62	27097~51180	2700

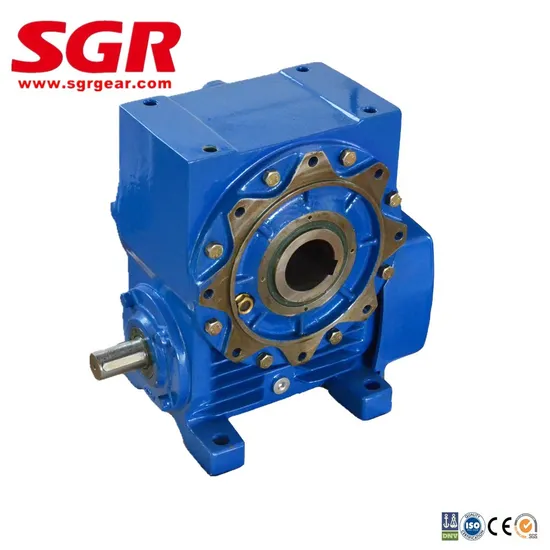

Double-enveloping worm gearbox figure :
