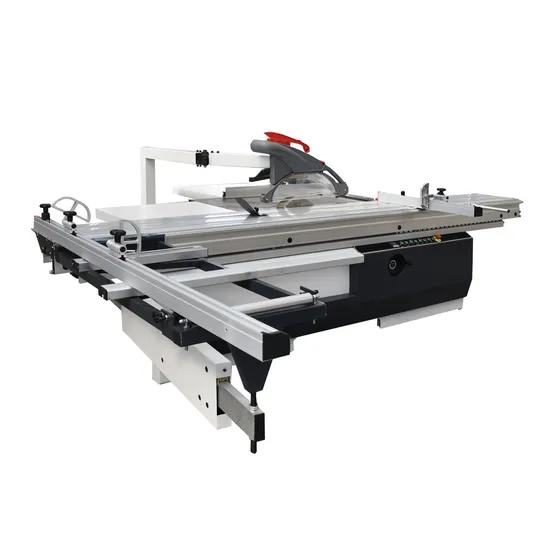

3200mm Precision Woodworking Cutting Altendorf Structure Sliding Table Panel Saw Machine

Product Description

PANEL SAW ZD400T
TECHNICAL PARAMETERS

Lifting of saw blade	Electrical	Speed of main saw spindle	3000/4000/5000 r.p.m
Angle Adjustment	Manual	Main saw motor power	5.5 kw
Cutting degree readout	Yes	Main spindle diameter	30 mm
Dimension of sliding table	3200x415 mm	Diameter of scoring saw blade	120 mm
Gross cut capacity	3200 mm	Speed of scoring saw spindle	8000 r.p.m
Width of cut between saw blade and rip fence	1250 mm	Scoring saw motor power	1.1 kw
Tilting saw group	0-45°	Scoring saw spindle diameter	22 mm
Diameter of main saw blade	400 mm	Weight	1100 KGS
Max cutting height (90°)	125 mm	Overall dimension	3250x3150x900 mm

MACHINE DETAILS
Feature Apply to processing an extensive range of materials, including various density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates, and solid wood, along with other materials sharing similar wood structure and hardness. Moveable table guide track features a robust chromium steel bar structure, ensuring precision and durability. The sliding table is crafted from high strength extruded aluminum alloy, boasting exceptional strength and a design that prevents't bending over time. With a refined oxidation treatment, the sliding table's surface is both aesthetically pleasing and remarkably durable. The machine body is constructed with heavy-duty steel, augmented by a special heat treatment for enhanced stability and noise reduction. The saw blade's elevation is electronically controlled, featuring tilting digital display to streamline the operator's workflow.
FACTORY
Other information
1) Term of payment: T/T, 30% deposit required, with the remaining balance due before delivery.
2) Delivery: Efficient turnaround in just 15 days.
3) Machine voltage: Customizable to your requirements.
4) Warranty: Comprehensive 1-year coverage.
5) MOQ: Single set orders are accepted.
6) OEM service: Available upon request.
7) HS code: 84659100
8) Certificate: Accredited with CE & ISO 9000 certifications.
COMPANY INTRODUCTION
Qingdao Zhongding Machinery Co., Ltd stands at the forefront of the woodworking machinery manufacturing and export sector. Our expertise allows us to deliver top-tier, professional woodworking machines to our clients. Boasting cutting-edge technology, comprehensive testing lines, and four specialized production lines, our facilities are strategically located by the scenic Yellow Sea. This prime location provides a competitive edge, a stunning natural backdrop, and seamless air, land, and sea transport connectivity.
Our extensive product range includes the Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, and Press Machine, among others. These high-quality machines have found their way to numerous global destinations, including Europe, Russia, Southeast Asia, the Middle East, North America, and Australia.
We have developed a comprehensive sales system, underpinned by our unwavering commitment to quality first and customer priority. Our rigorous quality control measures ensure excellence, while our proactive approach drives the innovation and production of new models. We extend impeccable pre-sale and post-sale services and proudly hold both the ISO9001 international system certification and the CE security certificate.
Qingdao Zhongding Machinery eagerly anticipates building a lasting strategic partnership with you, offering unparalleled product quality and an exceptional service system.
