X5032 Vertical Mill Machine Universal Milling Machine

Product Description

X5032 Vertical Mill Machine Universal Milling Machine

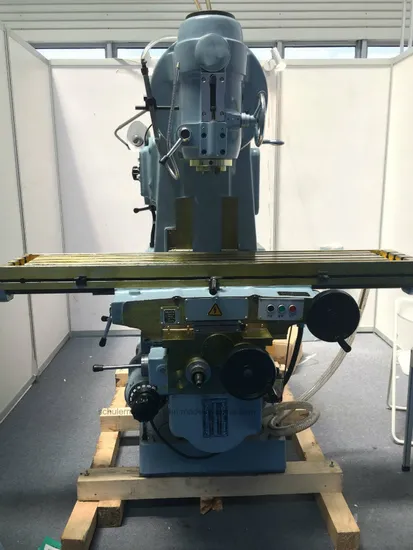

Product picture:
Performance:
· Powerful Tool Milling Machines;
· Milling machine for tool construction;
· Automatic feeds on all 3 axes;
· Outer arbor supporting for horizontal milling;
· Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
· Steamlined arrangement of operating controls on the right side;
· Vertical head quill for drilling, with hand lever feed;
· Quill stroke 80mm;
· Central lubrication;
· Hardened guideways;
· The milling machine can be enquipped with Digital Position Indicator.
Standard Accessories:
· Complete tool
· Cutter arbor (dia.Φ16,22,27,32mm)
· Reducing sleeves (Morse1,2,3)
· Spring collect (dia.Φ2,3,4,5,6,8,10,12mm)
Optional Accessories:
· Dividing head
· Machine vice
· Universal angluar table
· Rotary table
· Boring head
· 3-axis digital position indicator
Universal Milling Machine Technical Parameters:

Specifications	Unit	X5032
Table size	mm	320*1325
T-solts (NO/width/pitch)	mm	3/18/70
Max.longitudinal travel of table (manual/automatic)	mm	700/680
Max.transverse travel of table (manual/automatic)	mm	255/240
Max.vertical trave of table (manual/automatic)	mm	350/330
Rapid feed speed (X,Y,Z)	mm	2300/1540/770
Swovel angle of vertical milling head		±45°
Spindle travel	mm	70
Distance between spindle axis and column guideway	mm	350
Spindle bore	mm	29
Spindle taper		7:24 ISO50
Distance between spindle nose and table surface	mm	60-410
Spindle speed step		18
Spindle speed range	r.m.p	30-1500
Feed range of table travel		18
Main motor power	kw	7.5
Rapid motor power	kw	2.2
Overall dimensions	mm	2294*1770*1904
N.W/G.W	kg	2900/3200

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.

Universal Milling Machine Details:
Universal Milling Machine Package delivery:
