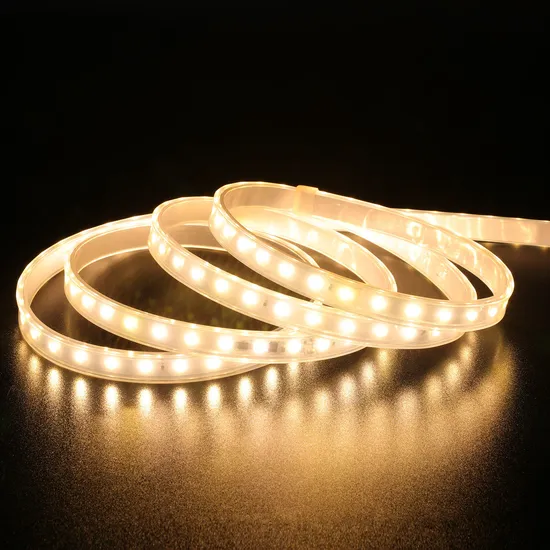

SMD2835 Warm White High Voltage 110v 220v Waterproof Dimming Strip Led Light

Product Description

SMD2835 Warm White High Voltage 110v 220v Waterproof Dimming Strip Led Light Product Parameter:

Model No.	TLV-HVFS2835Q120W
LED Quantity	120LEDs/m 2835
Color Temperature	2700 / 3000 /3500 / 4000 / 5000 / 5700 / 6500 / B / Y / Orange / Pink
Color	WW / NW / CW / B / Y / Orange / Pink
Voltage	AC110V / AC220V
Power (w/m)	8 / 10 / 12 / 15 / 16
CRI(RA>)	CRI>80 (CRI >90 / CRI >95 optional)
PCB Width	10/12mm
PCB materials	2Oz Double-Sided pure copper Circuit Board
LED Suppliers	XUYU / Honglitronic / Osram / Samsung
LED Chip Brand	Sanan ( Epistar / Samsung optional )
LEDs Material	packaged by 99.99% pure gold wire, red copper pad
LED BINs	2-Step/3-Step/6-Step, same BIN for each order
Luminous (lm)/LED	50-55 / 55-60 / 60-65lm
IP Rate	IP65 / IP67 / IP68
Cutting min unit	100mm / 500mm / 1m
View Angle	120°
Package (m/roll)	5m, 10m, 20m, 30m, 50m per roll ( customized length available )
Working Temperature (ºC)	-20-60°
Adhesive Tape	Original 300LSE 3M tape
Dimmable	Yes
Certificate	TUV CE, FCC, RoHS, IEC/En62471
Warranty	3 Years

Features as follow:
1. 2835 assembled LEDs:
- 99.99% gold wire, red copper pad;
- 24~26lm/LED ( Epistar 26-28lm/LED ) passed LM-80 certified;
- Double-sided circuit board
2. Cost saving, the strip do not need power supply to transform voltage, and adopt constant current IC scheme to realize constant current control to AC voltage;
3. Adopt silicone material,higher ingress protection, and strong resistance to corrosion;
4. The minimum cutting length is 500mm / 100mm.
IP67 ( Silicone extrusion, empty inside ) fit on indoor and semi-outdoor IP68 ( Full silicone extrusion ) can be used outdoor and underwater
Applications:
1. Home, stage lighting;
2. Festival, activities, exhibition lighting;
3. Backlight of signage;
4. Contour lighting;
5. Landscape decoration lighting;
6. Engineering, decorative project,etc
Packaging and shipping : 1. Packaging: 5/10/20/30/50 meters/roll, 150 meters per carton
2. Delivery time: normally about 7-10 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
FAQ:
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 50m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept T/T, PayPal or Western Union, Cash.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
