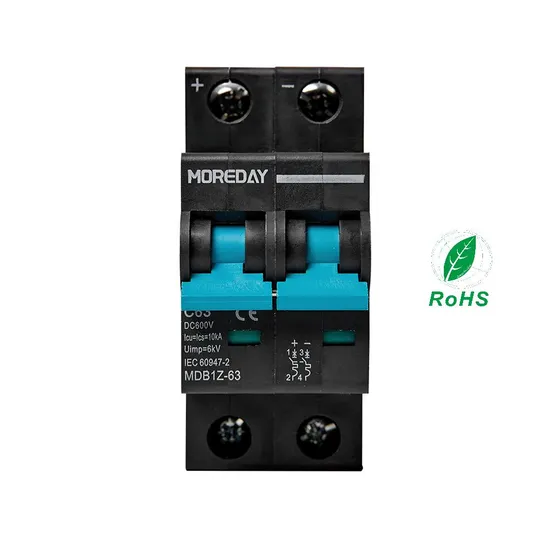

600V 1000V DC 1000V 2p 10A 16A 20A 25A 32A 40A 63A Curve DC MCB Miniature Circuit Breaker for PV System

Product Description

Product Description The mdb1z-63 New Black Series L7 DC MCB is a reliable and high-performance circuit breaker designed for electrical protection. With its sleek black design and advanced features, it offers an excellent solution for both residential and commercial applications.
One of the standout features of the mdb1z-63 is its compact size. Despite its small footprint, it delivers powerful performance, ensuring effective protection against overcurrent and short circuits. This makes it an ideal choice for installations where space is limited. Whether you're upgrading an existing electrical system or setting up a new one, this circuit breaker offers the convenience and efficiency you need.
In summary, the mdb1z-63 New Black Series L7 DC MCB is a top-notch circuit breaker that offers outstanding performance and reliability. Its compact size, durability, and user-friendly design make it a valuable addition to any electrical system. Whether you're a homeowner or a professional electrician, this circuit breaker provides the necessary protection while enhancing the aesthetics of your setup. Invest in the mdb1z-63 today and experience peace of mind knowing your electrical system is in safe hands.
Product Parameters

MDB1Z Series Circuit Breaker		MDB1Z-63PV
Frame Degree Rated Current		63A
Pole		1P, 2P, 3P, 4P
Rated Operating Voltage (VDC)		12V, 24V, 48V, 300V, 600V, 900V, 1200V
Rated Current In (A)		10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated Insulation Voltage Ui (VDC)		1250VDC
Rated Impact Voltage Uimp (kV)		6
Ultimate Breaking Capacity Icu (kA)		6
Run Breaking Capacity Ics (%Icu)		100
Curve Type		C
Trip Type		Thermal- magnetic
Mechanical	Actual average value	20000 times
	Standard value	8500 times
Electric	Actual average value	2500 times
	Standard value	1500 times
Wiring Capacity (mm²)		In≤32A,1.5~6 mm², In ≥40A,10~16mm²
Ambient Temperature		-20ºC~+70ºC
Altitude		≤2000 m
Relative Humidity		≤9 .5%
Pollution Level		2, 3
Installation Environment		No obvious shock and vibration
Installation Category		Class II, Class III
Installation		Standard din rail
