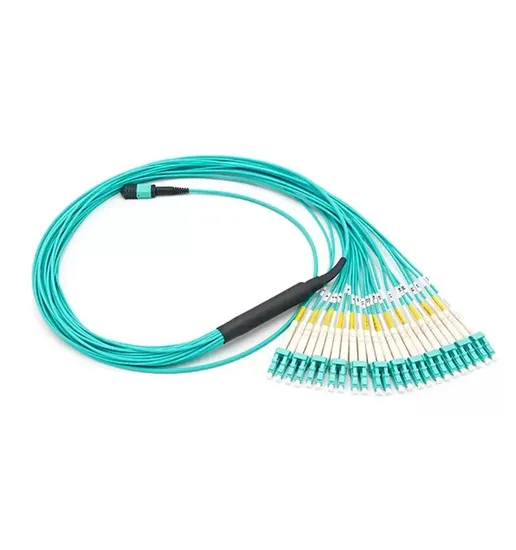

LSZH MPO Trunk Cable Om4 12f MPO-LC-MTP Fiber Optic Patch Cord

Product Description

LSZH MPO trunk cable OM4 12F MPO-LC-MTP fiber optic patch cord Product Description MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Product Features
- Low Insertin Loss: 0.35dB ultra low IL
- Bend Insensitive Fiber: 7.5mm minimum bend radius
- Test Assured Program: Insertion loss and return loss testing; End-face inspection; 3D interferometer test.
Product Application ·Data Centers
.High speed FTTH

Detailed Photos
Technical Specifications Optical Characteristics:

	G.652	G.657	50/125um	62.5 / 125 μm
Attenuation (+20ºC)	@850nm			≤3.0dB/km	≤3.0dB / km
	@1300nm			≤1.0dB/km	≤1.0dB / km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.22dB/km
Bandwidth	@850			≥500MHZ.km	≥ 500MHZ · km
(Class A)	@ 1300			≥1000MHZ · km	≥600MHZ · km
Numerical aperture				0.200 ± 0.015NA	0.275 ± 0.015 NA
Cable cut-off wavelength		≤1260nm	≤1480nm

Mechanical parameters:

Connector A	MPO Female (Male)	Connector B	MPO Female (Male)
Fiber Mode	OM4 (OM3) 50/125μm	Wavelength	850/1300nm
40/100G Ethernet Distance	150m at 850nm	10G Ethernet Distance	400m at 850nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
Polish Type	UPC to UPC	Minimum Bend Radius	7.5mm
Insertion Loss	0.35dB Max(0.15dB Typ.)	Return Loss	≥20dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Jacket OD	3.0mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to +85°C	Operating Temperature	-10°C to +70°C
