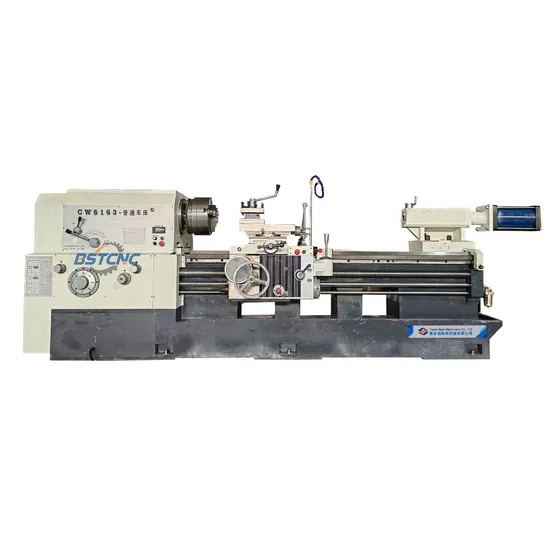

Heavy Duty Large Horizontal Lathe Manual Lathe Machine for Steel Cw6163
| US$15,600.00-16,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW6163
Processing Accessory
Metel
Guide Rail
Other
Tool Holder
4 Station Manual Tool Post
Power Source
Electric
Controlling Mode
System
Automatic Grade
Manual
Setting Mode
Other
Precision
High Precision
Condition
New
Product Name
Cw6163 Manual Lathe
Model
Cw6163
Max. Diameter Swing Over Bed
Φ630 mm
Max. Diameter Swing Over Cross Slide
Φ350 mm
Distance Between Centers
1500/2000/3000/4000/5000/6000 mm
Maximum Machining Length
1250 mm
Width of Bed Way
550 mm
Max. Load Capacity
2.5 T
Spindle Bore
Φ105 mm
Spindle Nose
C11
Spindle Taper Hole
(Metric):120/1:20
Spindle Motor
11 Kw
Spindle Speed Steps
Three Gears Frequency Conversion
Dimensions
3600X1600X1400 mm
Weight
4200 Kg
Transport Package
Wooden Case
Trademark
BST
Origin
China
HS Code
8458110090
Packaging & Delivery
Package Size
360.00cm * 160.00cm * 140.00cm
Package Gross Weight
4200.000kg
Product Description
Product DescriptionUNIVERSAL ENGINE LATHE APPLICATION
This series lathe is universal metal machining equipment, mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surfaces, as well as turning internal and external pipe threads such as metric , inch,module and DP threads etc, Meanwhile this series lathe is also used for drilling and grooving with metal material workpieces such as cast iron, steel and non-ferrous metals.
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Headstock gears are hardened and ground to achieve high precision and low noise.
| SPECIFICATION OF CONVENTIONAL LATHE MACHINE | |||
| ITEMS | UNIT | CW6163 | |
| Capacity | Max. diameter swing over bed | mm | Φ630 |
| Max. diameter swing over cross slide | mm | Φ350 | |
| Distance between centers | mm | 1500/2000/3000/4000/5000/6000 | |
| Maximum machining length | mm | 1250 | |
| Width of bed way | mm | 550 | |
| Max. load capacity | T | 2.5 | |
| Spindle | Spindle bore | mm | Φ105 |
| Spindle nose | C11 | ||
| Spindle taper hole | (Metric):120/1:20 | ||
| Spindle motor | KW | 11 | |
| Spindle speed steps | - | Three gears frequency conversion | |
| Spindle speed range | rpm | (L):10-200/(M):180-500/(H):480-1200 | |
| Turret | Max.traverse of the turret | mm | 200 |
| Turret type | - | Manual 4 position | |
| Tool shank size | mm | 32×32 | |
| Feed | Traverse of cross slide | mm | 320 |
| Z axis feed grade /range | mm | 32/0.095-1.4 | |
| X axis feed grade/range | mm | 32/0.042-0.7 | |
| Carriage raid traverse speed | Mm/min | 3740 | |
| Cross slid raid traverse speed | mm/min | 1870 | |
| Metric thead grade/range | mm | 22/1-15mm | |
| Inch thread grade/range | T.P.I. | 26/14-1 | |
| Tailstock | Tailstock quill diameter | mm | Φ100 |
| Tailstock quill taper | - | Morse NO.5/6 | |
| Tailstock quill travel | mm | 250 | |
| Dimensions | Width x Height | mm | 3600X1600×1400 |
| Weight | Net weight | KG | 4200 |
| Standard Configuration |
| - 3 jaws manual chuck (320mm ); -4 station manual tool post ; -Manual tailstock ; -Whole casting bed ; |
