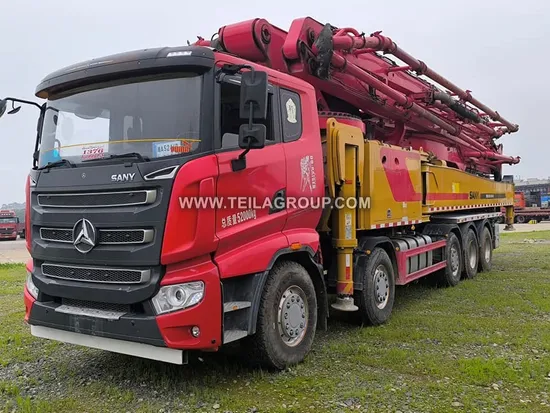

Second Hand San-Y 65m 63 67 Meter Concrete Pump Truck Mobile Boom Pump 2021

Product Description

Second Hand SAN-Y 65m 63 67 Meter Concrete Pump Truck Mobile Boom Pump 2021 Product Description
Highly Reliable
· · Professional Supplier for Used Concrete Machine for Over 10 Years
· · Machines made by International authoritative-certificate lighthouse factory & world-class manufacturing capability
· · Optimized key parts with ultra-high strength steel
· · Open hydraulic system & high configuration
· · SY customized chassis & SY DEUTZ Engine
· · Stable signal & precise control
- - In Stock, Can be Checked any time! Strong Pumping· · A 10% increase in pumping efficiency
· · smoother flow, less blockage and meet long-time pumping need
· · Dual-purpose machine: quickly transform into a line pump
· · Various boom types & flexible working posture
· · Less site limitation, smaller footprint & wider placement range Extremely Economical· · Advanced fuel combustion & intelligent power matching technology
· · The best cost saving choice
· · Free Cleaning & Inspection Service
· · Professional Factory Maintenance & Remanufacturing
· · Machines in Working Condition with Valuable Prices Ultimate User Experience· · High configuration cab & exceptionally comfortable driving experience
· · Single-button operation design & optimized flow of the entire process
· · MachineLink+ & all in your control
Product Parameters
San-y Heavy Industry SYM5541THBF 650S 65m S series concrete pump truck technical parameters

Vehicle parameters
Length	14780mm
Width	2550mm
Height	4000mm
Weight	54000kg
Concrete theoretical displacement low pressure	180m³/h
Concrete theoretical displacement high pressure	125m³/h
Theoretical pumping pressure low pressure	8.3Mpa
Theoretical pumping pressure high pressure	13Mpa
Theoretical pumping times low pressure	27 times/minute
Theoretical pumping times high pressure	19 times/minute
Conveying cylinder inner diameter	260mm
Conveying cylinder stroke	2100mm
Hydraulic system	Open loop
System oil pressure	32Mpa
Fuel tank capacity	450+450L
Water tank volume	700+700L
Conveying pipe diameter	125mm
End hose length	3m
End hose diameter	125mm
Chassis model	SYM5551THB1F
engine model	D13C6-480E
engine maximum net power	348/1900kW/rpm
Emission	EURO VI
fuel tank volume	600L
Displacement	12.94L
Maximum speed	90km/h
Number of bridges	5 Axles
Chassis	SAN-Y
Boom vertical height	64.2m

Detailed Photos
Company Profile

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
