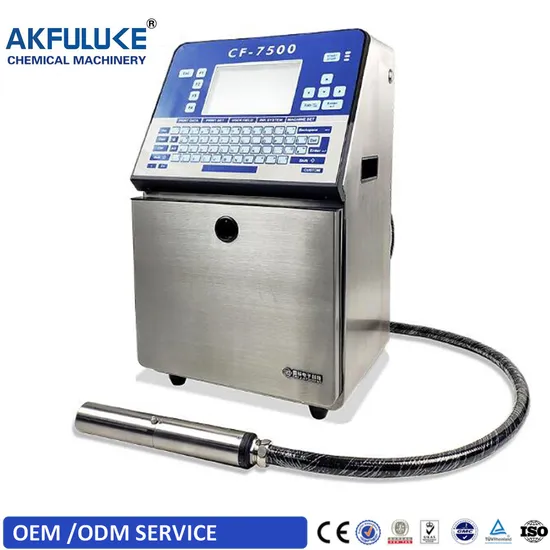

Daily Fully Automatic Industrial Inkjet Printer DOT Matrix Coding Machine

Product Description

Daily Fully Automatic Industrial Inkjet Printer DOT Matrix Coding Machine
Maufacturer. Support OEM/ODM1.Simple Operation
2.Superior Print Quality, Less Maintenace, Reduce Total Cost
3.Consumables Saver
4.Engineered to keep your line up and runnning longer
5.24*24 dot. 3-4 lines
6.Application: Food and Beverage, Medicine,Spare Parts Industry
Used for: Metal, PET bottle. Glass, Plastic, HDPE/PVC Pipe Tube Cabel Tube, Wire, Rubber.
Speicfication

CIJ Inkjet Printer			V150PLUS
Max Print Speed			280m/min (5*7 dots)
Printable Font Height			1.5 mm~20mm. Maximum can be widened 9 times
Dot Matrix			24 * 24 dot matrix
Memory Capacity			Up to 1000 messages
Printing Line			Within 3 Lines
Printer Content			Time, Date, Lot No, Serial No. etc.
Operate Interface			Chinese,English,Korean and others with graphic editing function
Print Material			Metal, plastic, glass, wood, tube, electrical wire, cable etc.
Print Distance			Max: 30mm,from printhead bottom to substrate surface
Ink Color			Black, blue, red etc
Ink Consumption			70 millions character per litre
Power			AC220V /380V 50HZ 100W
Printhead Conduit Length			2.7m (Customizable)
USB and RS232 Port			With USB port, but no RS232 port
Environment Temperature			5ºC-45ºC
Humidity			Below 90%
Machine Dimension			387 * 270 * 507mm
Package in wooden dimension			625 * 455 * 730mm
NW,/GW.			30kgs / 40kgs
Display and Keyboard			8-inch full-color high-definition touch screen,and full-touch virtual keyboard

Feature
1. Quick-dry ink used industrial non-contact small character inkjet printers
2. Improved stability, easier maintenance
3. Intelligent ink system
3. Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK
4. Easy to be integrated at any position of the production line
5. User friendly interface and most reliable ink system
6. Easy operate and can trouble free run long time
7. USB Port for logo and other complicated printing contents
8. Economic and can satisfy most printing requirements

Hydraulic system
1.Full automatic viscosity and pressure control
2.Error proofing design to differentiate the ink and solvent
3.Electronic control system completely separated design from hydraulic system

Print Head
1.Compatible design, maintenance friendly
2.Ruby nozzle and difficult to be blocked
3.Nozzle Size: 62 μm standard, 52 to 70 μm optional
4.Can be installed in any position
5.Integrated design and Easily accessible
After-sales Service 1.Warranty time: one year, from the date which the product is qualified commissioning.
Any damage except the wrong operation during warranty period is repaired freely.But the travel and hotel expenses should be count on buyer.
2. Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Training services: our engineers will train your staff to operate it during the period of installation and commissioning,
and they will not leave there until your staff can operate it properly and normally.
4. Maintenance services: any malfunction happened, once you inquiry us, we will reply you within 48 hours except the special reasons.
5. Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6. Certificate services: we can provide related certificates to customers freely according to the request of customers.
7. Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.
8. The file: the Manual Specification, report of the material which used to the equipment and other documents related to the GMP authentication information will be provided by us.
RFQ
Q: Are you a factory? A: Yes we are a factory with more than 20 years manufacturing experience. One is in Jjiangsu Province,
Another is in Guangzhou next to our office.
Q:I'm new in our industry,but I'm planing to set up a factory, what canI do? A: We will design the most suitable proposal based on your actual situation, such as the daily production,raw material formula, factory layout, etc. Also we would like to intro- duce some excellent suppliers of raw materials, bottles,labels, etc if needed. After sales, engineer will be send to fields installation, training and commissioning.
Q: How can you control the quality before delivery? A: First, our component/spare parts providers test their products before they offer com- ponents to us.Besides, our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we wil take a video to record the testing procedure and send the video to you.
Q:Are your machines difficult to operate? How do you teach us using the machine? A: Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines'functions and to teach you how to use them.If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines.
Q: Can I come to your factory to observe machine running? A: Yes, customers are warmly welcome to visit our factory.
Q: Can you make the machine according to buyer's request?
A: Yes,OEM is acceptable. Most of our machines are customized design based on cus- tomer's requirements or situation
