High Precision Bogie Hearth Annealing Furnace with Onlineannealing

Product Description

Scrap Copper Melting Furnace
Description: It is mainly used for melting, refining and purifying red copper scrap;
The downstream can be equipped with different equipment to produce various copper products as required. Such as: copper rod, copper ingot, copper plate, etc.
Provide scrap copper melting shaft furnace, round tilting furnace, tilting scrap copper melting furnace, reverberatory furnace;
According to customer needs, the same furnace type is to provide a variety of output of the furnace;
The same furnace has a variety of energy sources for customers to choose;
The furnace body adopts high temperature resistance and refractory brick masonry, it is durable;
HMI+PLC control, carbon monoxide analysis and tracking. Automatic process data collection, centralized display, read straightforward, and easy to operate;

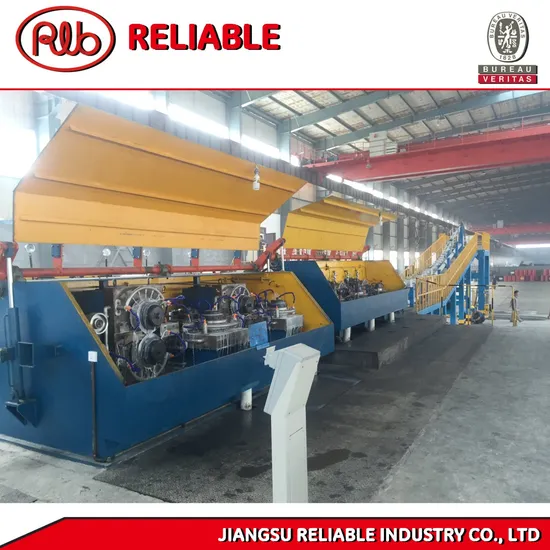

2.Equipment Pictures:

3,Technical Parameters:

Name	Scrap Copper Melting Shaft Furnace	Round Tilting Furnace	Tilting Scrap Copper Melting Furnace	Reverberatory Furnace
Material	Red copper scrap, copper content is more than 92%	Red copper scrap, copper content is more than 92% (Can be mixed with a small amount of more than 85% of the recycled copper)	Red copper scrap, copper content is above 90% (Can be mixed with a small amount of more than 85% of the recycled copper)	Red copper scrap, copper content is more than 90% (Can be mixed with a small amount of more than 85% of the recycled copper)
Energy	Natural gas, LPG	Natural gas, LPG, Heavy oil, Diesel, Coal gas	Natural gas, LPG, Heavy oil, Diesel, Coal gas	Natural gas, LPG, Heavy oil, Diesel, Coal gas
Furnace Type	Straight and vertical	Horizontal cylinder	A square furnace with an arc support plate at the bottom	Fixed square furnace
Product	The main function of the furnace is melting. It needs to be equipped with refining furnace, and can produce positive plate, copper rod, copper ingot, etc.	Positive plate, copper rod, copper ingot, etc.	Positive plate, copper rod, copper ingot, etc.	Positive plate, copper rod, copper ingot, etc.
Tonnage or Capacity	10T/H~40T/H	1T~80T	25T~150T	25T~150T

4.Application Demonstration:
It can equip with continuous casting and rolling machine to produce low oxygen copper rod (see 1st line below);
It can equip with continuous ingot-casting machine to produce copper ingot (See 2nd line below);
It can equip with casting turnplate to cast positive plate (See the 3rd line below);
