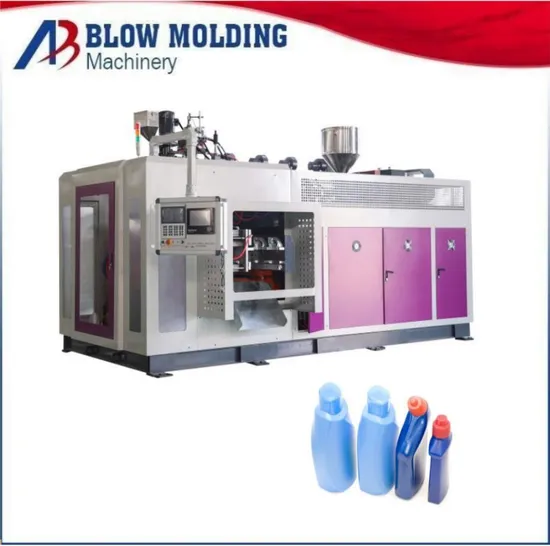

Automatic Plastic Bottle Blow Molding Machine (ABLB75I)

Product Description

Company Profile

Certifications
Our Advantages
ABLB75 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
Product Parameters

Max. Product volume	8 liters
Output capacity	120pcs/h
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	6 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	11 KW
Clamping force	78KN
Max.size of mold	188-600mm
Mold stroke	400 X 450mm
Max.die diameter	180mm
Blowing pressure	0.6 mpa
Air Volume	0.7 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	60 L/MIN
Size of Machine	3.6x1.8x2.8m
Weight of machine	6.3 ton
