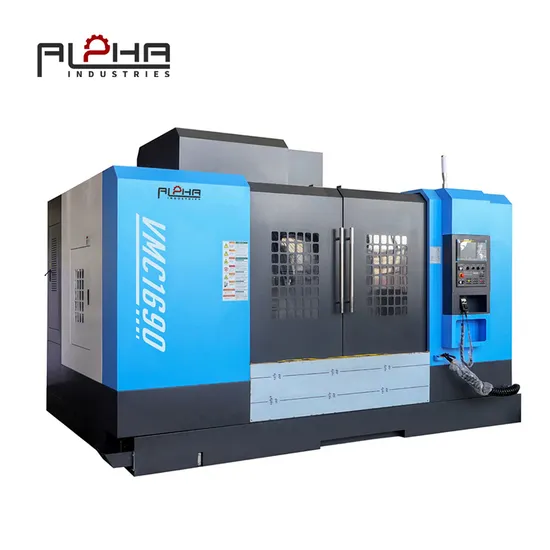

High Repurchase Rate Vmc1690 CNC Milling Machine Industrial Machining Center

Product Description

Model NO.	Vmc1690	Structure	Bed type
Milling Cutter Type	Vertical Milling Cutter	Milling Cutter Structure	Indexable Type
Controlling Mode	CNC	Automatic Grade	Automatic
Precision	High Precision	Certification	CE, ISO 9001
Condition	New	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Product Parameters

Model		VMC1170	VMC1275	VMC1380		VMC1590		VMC1690			VMC1890
Travel	X-axis	1100mm	1200mm	1300mm		1500mm		1600mm			1800mm
	Y-axis	600mm	750mm	700mm		800mm		800mm			900mm
	Z-axis	600mm	600mm	700mm		700mm		700mm			800mm
	Spindle nose to table surface	120-720mm	120-720mm	120- 820 mm	80- 780 mm	190- 890 mm	155- 855 mm	190- 890 mm	155- 855 mm	185- 885 mm	150-950mm
	Spindle center to column surface	650mm	750mm	750mm		855mm		855mm			950mm
Worktable	Table size	1200x600mm	1300x700mm	1400x700mm		1600x800mm		1700x800mm			2000x900mm
	Max.loading	800kg	1000kg	1200kg		1200kg		1500kg			2000kg
	T-slot width	18	18	18mm	18mm	22mm	22mm	22mm			22mm
	T-slot quantity	5	5	5mm	5mm	7mm	7mm	7mm			7mm
Spindle	Spindle taper	BT40	BT40	BT40	BT50	BT40	BT50	BT40 BT50		BT50	BT50
	Spindle speed	8000/10000 rpm	8000/10000 rpm	8000rpm		8000rpm		8000 8000 rpm rpm		6000 rpm	6000rpm
	Spindle motor	11kW/15kW (10000)	11kW/15kW (10000)	11kW/ 15kW (10000)	15kW/ 18.5kW (10000)	11kW/ 15kW (10000)	15kW/ 18.5kW (8000)	11kW/ 15kW/ 15kW 18.5kW (10000) (8000)			15kW/18.5kW (8000)
Tool	Max.tool dia.	85/150mm	85/150mm	85/ 150 mm	125/ 225 mm	75/ 150 mm	125/ 225 mm	75/ 125/ 150 225|225 mm mm		125/ mm	125/225mm
	Max.tool length	300mm	300mm	350mm		350mm		350mm			350mm
	Max.tool weight	7kg	7kg	7kg	15kg	7kg	15kg	7kg	15kg	15kg	15kg
Rapid movement	X,Y axis rapid feed	24000mm	24000mm	24000mm		24000mm		24000mm			24000mm
	Z axis rapid feed	20000mm	20000mm	20000mm		20000mm		20000mm			20000mm
	Cutting feed	1-10000 mm/min	1-10000 mm/min	1-10000 mm/min		1-10000 mm/min		1-10000 mm/min			1-10000 mm/min
Accuracy	Position accuracy	±0.005mm	±0.005mm	±0.006mm		±0.006mm		±0.007mm			±0.007mm
	Repeat positioning	±0.003mm	±0.004mm	±0.004mm		±0.005mm		±0.005mm			±0.005mm
	accuracy
XYZ axis AC servo motor		torque N.m 20/20/27	torque N.m 20/20/27	torque N.m 20/27/27		torque N.m		torque N.m 36/36/36			torque N.m
						36/36/36					36/36/36
Power device	Capacity	25KVA	30KVA	35KVA		35KVA		35KVA			35KVA
Air supply	Using air pressure	6bar	6bar	6bar		6bar		6bar			6bar
Dimension and weight	Dimensions	3200x2500x2800 mm	3450x2750x2800 mm	3580x2800x2850 mm		4150x3370x2900 mm		4150x3370x2900 mm			4800x3400x3300 mm
	Net weight	7000Kg	8500Kg	9800Kg		14300Kg		13400Kg			15800Kg
Linear guide rail diameter (XY/Z)		45/45/45	45/45/45	45/45/45		55/45/55		55/45/55			55/55/55

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
