16mm Drilling Machine Tapping Machine (SWJ-16/SWJ-16(A))

Product Description

COMPANY PROFILE
Hangzhou West Lake Drilling Machine Co ., Ltd . is the largest manufacturer of drilling presses , milling / drilling machines and tapping machines in China , which was established fifty years ago and has been always on the top of quality , production and varieties in the field of bench drills in China .
With brand " Westlake ", our products have been served for international market since 1956. You may find them widely used in different fields around the country and more than 60 countries / areas worldwide at present . Westlake is one of the most famous trademark among China machine and electric products for exportation , enjoying a high reputation by all customers both domestically and overseas .
Equipped with a R & D center , Metrology and test center , we have advanced product and test equipment such as CNC , Composite Machine Tool , Coordinate Measuring Machine and laser interferometer etc . Our company is experienced and strong in product design and manufacture , in constant pursue of advanced technology and continuous development of CNC . Currently we are supplying three series of Westlake drilling machines , Westlake Precision Machine and Westlake compact - sized CNC with more than one hundred types of products .
we obtained ISO9002QA and ISO9001:2000 certification as early as 1996 and 2002 respectively . Our products have obtained Germany GS and Europe CE certification as well .
Product Description
Main feature:
1.It use machinery friction cluth make the spindle positive and negative rotation.
2.Little impact and rotation.
3.Machinery friction cluth was equipped with over loading protection mechanism.It can protect tap.
Technical data:

Max.tapping capacity(cast/steel)	M16/M12
Diameter of column	73mm
Spindle speeds range	forward:240-570rpm
	reverse:275-650rpm
Max.distance spindle nose to worktable	492/450mm
Max.distance spindle nose to base	676mm
Distance spindle axis to column surface	183mm
Spindle taper	B18
Spindle travel	50mm
Dimension of worktable surface	270×280mm or Φ320mm
Dimension of base surface	254×237mm
Overall height	1230mm
Motor	750w
N.W./G.W.	120/102kg
Ship measurement	79×46×134cm

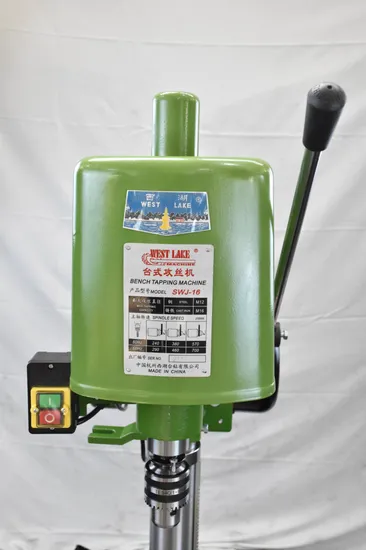

The picture:
