PVC/WPC Window&Door*Ceiling/Wall Panel Wall Frame Profile Extruder Line

Product Description

pvc ceiling/wall panel extrusion line wpc window/door panel production line pvc profile making machine
One production line can meet multiple needs:)
Introduction of each part:

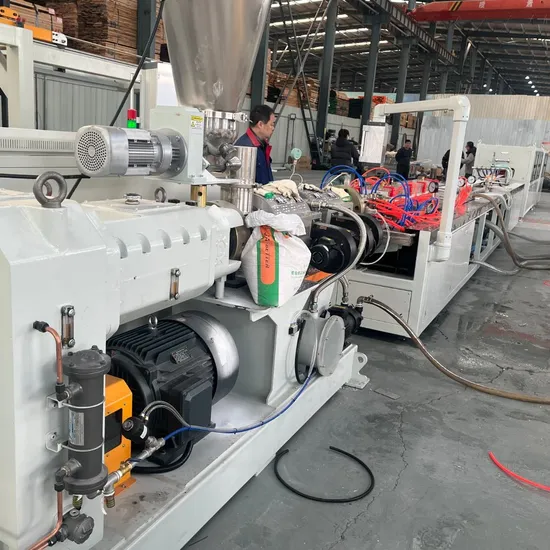

Conical twin screw extruder
• World famous brand electrical component such as Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
Molds for different needs:
Die head
• 3Cr13/3Cr17 material;
•Complete set include extrusion die head, calibrator and cooling tank;
• Apply to soft PVC, rigid PVC, soft-hard co-extrusion profile, foamed profile, multi-layers co-extrusion etc.
Calibration table
• Include full set of vacuum and water pump;
• Length 6/9m;
• Independent operation panel for easy operation.
Haul off&Cutter
• Upper and lower caterpillar is driven separately and speed control by frequency inverter;
• Fast change type pads for easy operation;
• Install plate is adopts aluminum material;
• Compacting driving by pneumatic; • Tracking cutter or lifting saw cutter with adopts double station dust collection system;
• Synchronous driving by air cylinder or servo motor control.

Stacker
• Stainless steel 304 as touching material;
• Discharge driving by air cylinder.
Technical parameter:

Motel	Screw diameter	Capacity(kg/h)	Motor power(KW)
SJSZ-45	45/90	75	15
SJSZ-48	48/113	90-120	18.5
SJSZ-51	51/105	90-120	18.5
SJSZ-65	65/132	250-300	37
SJSZ-80	80/156	320-400	55/75
SJSZ-92	92/188	600-800	110

PVC ceiling and wall panel production line is an equipment system for producing PVC wall board,
which has the following characteristics:* Automated production: PVC ceiling and wall panel production line is a fully automated production system, which can realize the whole process of automatic operation from raw material supply to finished product packaging. It includes the transportation, mixing, extrusion, cooling, cutting and packaging of raw materials, which reduces the need for manual operations and improves production efficiency and product quality.
* Precise control: The PVC ceiling and wall panel production line adopts an advanced control system, which can monitor and adjust various parameters in the production process in real time, such as temperature, pressure and speed, to ensure product consistency and quality stability.
* High-efficiency production capacity: PVC ceiling and wall panel production line has high-efficiency production capacity, which can realize large-scale, continuous and stable production. The design and process flow of the production line have been carefully optimized to maximize production efficiency and meet market demand.
* Flexible and diversified: PVC ceiling and wall panel production line can be customized according to different needs andspecifications, so as to realize diversified product design and production. Wall panels of different thicknesses, widths andlengths can be produced, and products can be customized by changing extrusion dies and adjusting production parameters.
* Resource and energy saving: The PVC ceiling and wall panel production line adopts advanced manufacturing technology and equipment, which has advantages in saving raw materials and energy. Efficient manufacturing process and equipment design make the utilization rate of materials higher, reduce waste generation, and reduce energy consumption.
* Quality control: The PVC ceiling and wall panel production line is equipped with a strict quality inspection and controlsystem, which can monitor and inspect all links in the production process in real time to ensure that the product quality meets the standards and requirements.
Company Profile:
Qingdao Trusty Plastic Machinery Company, which is a professional plastic extrusion equipment manufacturer integrating design, development, production and sales.The main products of our company are rich. The production technology is mature. And the after-sales is professional and guaranteed.Our products were sold throughout the country and even abroad, such as: Pakistan, Vietnam, India, Algeria, Egypt and other regions.
We are committed to listening to our customers' needs and meeting them.
Tell me your requirements and I will provide you with high quality equipment.
Package & Transportation:
FAQ
Q1: Your company is a trading company or a machine manufacturer?
A1:Our company is a plastic machinery manufacturer which is engaged into this trade more than 15 years.As a manufacturer,we could supply our machine,service,technical support and maintenance directly and it's more convenient.
Q2: How to get an accurate offer?
A2: Because our offer and technical specification is associated with your final product and requested capacity,we will choose the right model of extruder and mould after understanding all the information,then we could supply our plan.We could fully exchange information by Email, whatsapp or wechat.
Q3: Where is your factory and which port is the nearest to your factory?
A3: My factory is in Qingdao city, Shandong Province and the nearest seaport is Qingdao port.
Q4: How long is the delivery time?
A4: Generally it will take 30-45 days.
Q5: Could you send your engineers to our factory?
A5: Yes,we will send our engineers to your factory for installation,commissioning and training after machines arrive at your factory.In addition,if you need our engineers available in the future,we also could send our engineers.
If you have any questions, please do not hesitate to contact us. We Look forward to listening to you!
Pre-sale We provide presales service in various forms, for example, making investment budget, manufacturing planning, etc. so that customers make a reasonable plan with less cost.Investment budgeting---We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.Plant Planning---We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission etc.On-saleDetailed design of workshop lay-outTechnological information of provided productsSchedule about design, manufacture and installationWorking & Producing processTraining courses for the technician team so that the installation is safe and standardAfter-saleFor customers buying our products, we provide them training so that they can use and maintain the machine independently.We will offer to customers technical support in time. If needed, we will offer on-line guidance and assistance.We can provide free technical guidance if customers need new equipment, add or rebuild equipment.We will prioritize the product upgrading of previous customers.
