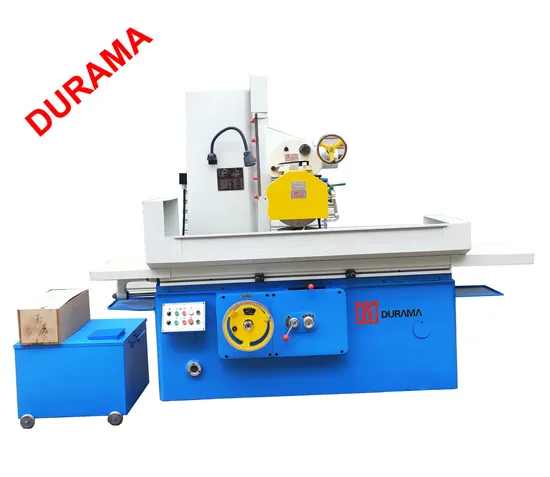

Durama Surface Grinding Machine M7130*1000 with High Precision
Basic Info.
Model NO.
M7130*1000
Type
Surface Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Surface
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Color
Blue or Optional
Power
380V 50Hz 3pH or Optional
Speed
Fast
CNC
Semi
Transport Package
Wooden Box
Specification
1000
Trademark
DURAMA
Origin
China
HS Code
84601990
Production Capacity
3000 Per Year
Product Description
| Model | M7130 | |||
| Worktable | Table size (width & Length) | mm | 300*1000 | |
| The working size (W*L) | mm | 300*1000 | ||
| Vertical travel | mm | 1100 | ||
| Working speed () | m/min | 3-27 | ||
| Worktable T-slot (width & number) | mm | 3*18 | ||
| Worktable capacity | kg | 468 | ||
| Grinding head | Max distance from the spindle axis to the working surface of the table | mm | 575 | |
| Intermittent feed rate per stroke in the transverse direction of the grinding head | mm/time | 3-60 | ||
| Wheel speed | r/min | 1440 | ||
| Vertical feed handwheel dial value | mm | 0.01 | ||
| Feed rate of grinding head per rotation of handwheel | vertical feed | mm | 8 | |
| infeed | ||||
| Grinding wheel size | mm | Φ350*40*Φ127 | ||
| Motor power | Total power | kw | 8 | |
| Grinding head motor power | kw | 4.5 | ||
| Working accuracy | Parallelism of machined surface to base surface | mm | 300:0.01 | |
| Surface roughness | um | Ra0.63 | ||
| Machine weight | Net weight | kg | 3500 | |
| Dimension | (L x W x H) | mm | 2800*1673*2035 | |
| Model | M7130X1000 | |
| Worktable Size | 1000×300 mm | |
| Dimensions | 2800×1673×2035 mm |
Product Description1
DURAMA surface grinding machines are commonly used in manufacturing and metalworking industries. The surface grinding machines play a crucial role in achieving precision and smoothness on the surfaces of various materials, such as metal, ceramics, plastics, and so on.
The main performance characteristics:
The screw rod of the grinding machine is made of special alloy steel through strict processing and heat treatment technology.
Grinding head is with vertical rapid lifting, improve production efficiency.
The grinding head lateral movement is driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
