ZK1550 Taladro Radial Drilling Grinding Milling Lathe machine
| US$95,000.00-97,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZK1550
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
N.W
12000 kilos
Transport Package
Metal Pallet
Specification
4800 *3364 *3000 mm
Trademark
HERCULES OR OEM
Origin
China
HS Code
8459290000
Production Capacity
3000 PCS/Month
Product Description
| Specification | Unit | ZK1550 | |
| Max.drilling diameter | mm | 50 | |
| Max.threading capacity | M24 | ||
| Table size(L×W) | mm | 1500X2000 | |
| Transverse travel of table | mm | 1500 | |
| Vertical travel of spindle herd | mm | 2000 | |
| Spindle travel | mm | 200 | |
| Max.distance from spindle nose to working surface | mm | 815 | |
| Min.distance from spindle nose to working surface | mm | 15 | |
| Spindle taper(Morse) | N0.5 | ||
| Spindle speed | r/min | 25-2000 | |
| Max.torque of drilling spindle | N.m | 500 | |
| Vertical travel of beam | mm | 500 | |
| Power of beam elevating motor | kW | 1.5 | |
| servo motor torque | X | N.m | 27 |
| Y | N.m | 14 | |
| Z | N.m | 18 | |
| Feed rate (X,Y,Z) | mm/min | 5-2000 | |
| Rapid traverse | X,Y | m/min | 8 |
| Z | m/min | 5 | |
| Positioning accuracy | X | mm | ±0.03/300 |
| Y | mm | ±0.03/300 | |
| Z | mm | ±0.08/100 | |
| Repeat ability | X | mm | +0.01 |
| Y | mm | +0.03 | |
| Z | mm | +0.02 | |
| Control system | SIEMENS 828 | ||
| Max. load | Kg | 3000 | |
| Overall dimensions L *W* H | mm | 4800 *3364 *3000 | |
| Weight of the machine | KG | 12000 | |
| Hercules Machinery Equipment Ltd. | |||

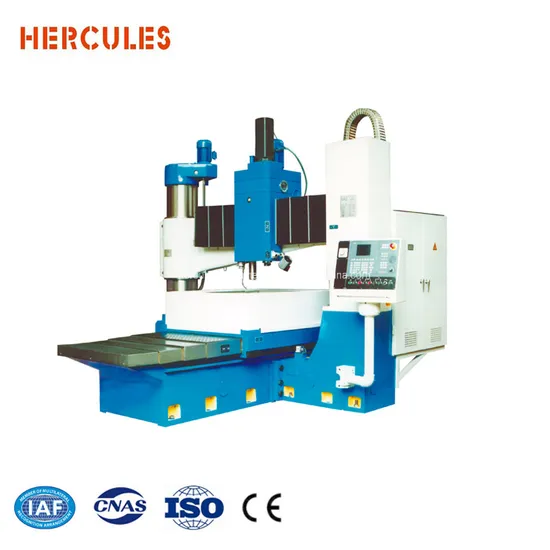

Pictures forreferenceonly:
