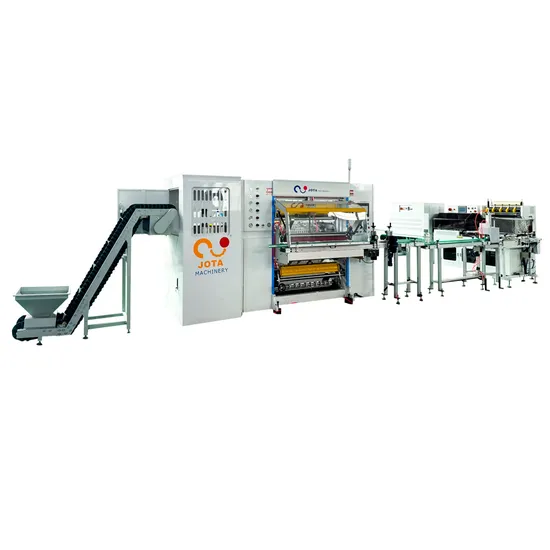

250m/Min Full Servo Motor Control 900m Fully Automatic Thermal Paper Slitting Rewinding Machine

Product Description

Product Description 250m/min Full Servo Motor Control 900m Fully Automatic Thermal Paper Slitting Rewinding Machine
Product Parameters Main Parameters:

Model Type	JT-SLT-900FA
Max. Unwinding Width	900mm
Max. Unwinding Diameter	1200mm
Max. Rewinding Diameter	Fully Automatic: 80mm.
Slitting Width	57mm & 80mm
Max. Machine Speed	250m/min
Main Power	7.5Kw
Total Power	23.5kw
Power Consumption	11KW.H
Unwinding Shaft	Shaftless Type
Rewinding Shaft	Without rewinding shaft
Weight	7500Kgs
Overall Dimension	8154*5244*2000mm

Technical Parameters:

Application Material

All kinds of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, POS Paper, Bond Paper, MG Paper and so on.

Unwinding Section

Hydraulic Shaftless unwinder which more easier to loading material. Pneumatic Brake from Italy. Fully automatic tension controller Adopts inline one color flexo printer with buffer device(optional).

Slitting Section

Disc cutter with Safety guard for the slitting device. Cutter with adjustable and movable blade base. Meter counter Banana Roller to avoid overlapping problem.

Rewinding Section

Without rewinding shaft, plastic/paper core will be suck to rewinding section automatically. Surface Rewinding technology, it adopts vertical method to press the rewinding roll Electromagnetic Brake from Taiwan Automatic cutting & gluing unit. Automatic pushing device to push finished rolls out automatically.

Controlling Section

Siemens PLC & HMI . All the parameters are displayed on the monitor Low voltage electrical appliances

Trimmed Waste

It adopts air blower to blow waste material off, the air blower power is 2.2kw. PU air blower pipe is more wear-resisting.

Configuration:

Name	Model	Pieces	Remark
Computer System	PLC(Siemens)+HMI	1 Set	Siemens
Motor		2 Sets
Frequency Inverter		2 Sets	Inovance
Unwinding Shaft	Shaftless Unwinder	1PC
Rewinding Shaft	Without shafts
Upper/Lower Round Knife		21 Sets	Standard Quality
Pneumatic Brake		1 Set	From Italy
Sensor		1 Set
Tension Control		1 Sets
Low Voltage Electrical Switch
Blower		1 Set	China
Cylinder			Airtac from Taiwan
Air Pressure Valve			SMC from Japan
Relay			CHNT
Spacer	As your request	As your request	China
Banana Roller		1 PC	Taiwan

Detailed Photos Heavy Duty Shaftless Unwinder Stand
Main Body: 1200mm Slitter Rewinder With Auto Core Feeder Machine
Automatic Core Sucking Device
Rotary Upper Blade with Safety Cover & Banana Roller
Automatic Cutting & Gluing Device
CCD Sensor
Hammer Unit
Thermal Shrink Packing Machine Packaging & Shipping Packaging Details:High Speed 250m/min 900mm Fully Automatic Thermal Paper Slitting Packing Machine with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Delivery Details: Within 65 days after receipt of 30% payment by T/T .High Speed 250m/min 900mm Fully Automatic Thermal Paper Slitting Packing Machine .
