Automatic Copying Milling / CNC Automatic Machine Tool

Product Description

Product Description
The RAY-MX7212/MX7512 automatic copying milling single axis and dual axis copying milling and engraving machine CNC inner and outer copying milling machine from Shanghai Ruitai Photoelectric Technology Co., Ltd. is a powerful woodworking machinery equipment. The following is a detailed introduction to the product:
Overview Model: RAY-MX7212/MX7512
Type: Automatic copying milling machine
Features: Single axis/dual axis optional, CNC operation, internal and external profile milling
2.Main function
Copy milling: This equipment can accurately perform copy milling and is suitable for processing various complex shaped workpieces.
Numerical Control Operation: Advanced numerical control system is adopted, which is easy to operate and has high machining accuracy.
Single axis/dual axis optional: Users can choose single axis or dual axis configuration according to their actual needs to improve processing efficiency.

Detailed Photos

Product Parameters
Processing range: Suitable for processing workpieces of various sizes, the specific range can be customized according to customer needs.
Spindle power: Depending on the device model and configuration, the spindle power may vary. Please consult the manufacturer for specific parameters.
Feed rate: can be adjusted according to processing requirements to ensure processing efficiency and quality.

Model	MX7512	MXS7512
Range of cutting diameter	Φ110-1200mm	Φ110-1200mm
Rectangular milling	2:1	2:1
Working thickness	130mm	130mm
Table size	φ700mm	φ700mm
Spindle diameter	φ30mm	φ30mm
Sanding spindle diameter	-	φ25.4mm
Stator shaft diameter	φ100mm	φ100mm
Spindle speed	9000r/min	9000r/min
Table speed	1.5-6r/min	1.5-6r/min
Spindle power	5.5kw	5.5kw
Sanding power	-----	3kw(Variable frequency speed)
Table driving power	1.5kw	1.5kw
Working air pressure	0.6-0.8Mps	0.6-0.8Mps
Dust outlet diameter	100mm*4pcs	100mm*4pcs
Overall size	1560*1400*2120mm	1560*1400*2120mm
Net weight	930kg	1300kg

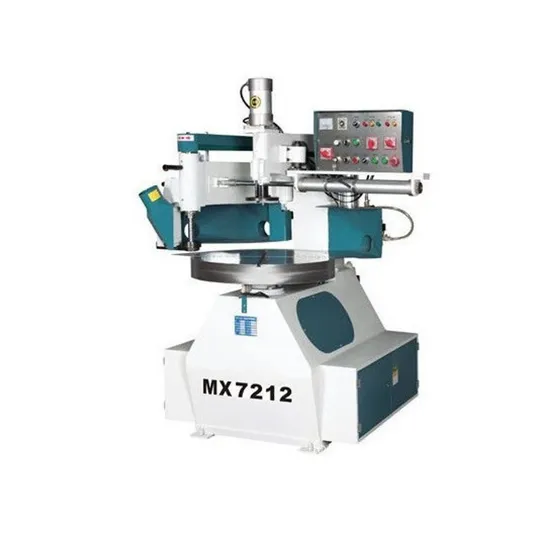

Model	MX7212
Range of cutting diameter	Φ100-800mm
Working thickness	50mm
Table size	φ700mm
Spindle diameter	φ30mm
Spindle speed	18000r/min
Table speed	1.5-6r/min
Spindle power	9.5kw
Knife shaft lifting motor power	1kw
Tool axis moving power	2.3kw
Table driving power	1.5kw
Working air pressure	0.6-0.8Mps
Dust outlet diameter	100mm*4pcs
Overall size	2200*1300*1800mm
Net weight	1200kg

Our Advantages
1.High precision: Advanced CNC system and precise transmission mechanism are adopted to ensure machining accuracy.
2.High efficiency: With a high degree of automation, it can achieve continuous processing and improve production efficiency.
3.Easy to operate: Humanized design, easy to operate, reduces operational difficulty and labor intensity.
4.Multipurpose: Suitable for processing workpieces of various materials, such as wood, bamboo, etc.
This device is widely used in industries such as furniture manufacturing, wood product processing, and building decoration. It can be used to process workpieces of various shapes, such as chair legs, table edges, door and window frames, etc.

After Sales Service
Service support
After sales service: Shanghai Ruitai Photoelectric Technology Co., Ltd. provides professional after-sales service, including equipment installation and commissioning, operation training, maintenance, etc.
Technical support: The manufacturer provides comprehensive technical support to solve various problems encountered by customers during use.
Notes
Before using the device, please carefully read the device manual to ensure proper operation and maintenance.
Regularly maintain and upkeep the equipment to ensure its long-term good condition.
During the processing, please pay attention to safe operation to avoid accidents.
In summary, the RAY-MX7212/MX7512 automatic profile milling, single axis and dual axis profile milling, CNC inner and outer profile milling machine from Shanghai Ruitai photoelectric Technology Co., Ltd. is a woodworking machinery equipment with excellent performance, easy operation, and wide applications. If necessary, please contact Shanghai Ruitai photoelectric Technology Co., Ltd. directly for consultation and purchase. Packaging & Shipping
Main Export Countries & Areas:
USA, UK, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina, Pakistan, India, Portugal, Canada, New Zealand, South Africa, UAE, Egypt, Norway, Netherland, Russia, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union or L/C
Delivery time: 7-10 days.
Quality Warranty: Shanghai Z-printing offers quality warranty for our lasers products with "3R" policy. For any inferior-quality products, Z-printing company is responsible for return, replacement and refund.
For specific installation and operation, please refer to the product manual or contact customer service for operation tips or videos after receiving the product. The equipment is guaranteed for one year, and artificial or abnormal damage is not covered by the warranty. If it exceeds one year, a certain fee will be charged for the relevant after-sales service. This device will continue to be optimized and improved due to various factors. At that time, please pardon us not notify separately. Thank you for your support and understanding.
