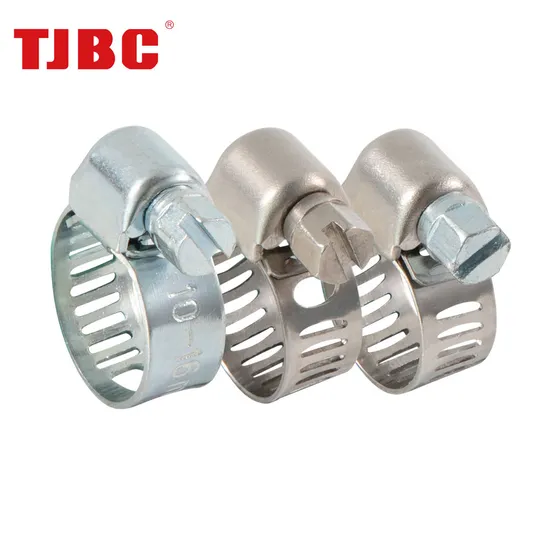

8mm Micro Perforated Adjustable W1 Worm Gear Pipe Clip American Type Gas/Oil/Water Hose Clamp, 18-32mm Bandwidth (0.69"-1.25")
Basic Info.
Model NO.
XM01A12
Connection
Hose Clamp
Surface Treatment
Galvanized Sheet
Head Type
Round
Product Name
American Type Hose Clamp
Type
Perforated Hose Clamp
Scope of Application
Auto Parts
Certification
ISO/TUV/BSCI/IATF
Transport Package
Plastic Bag Carton
Specification
18-32mm
Trademark
TJBC
Origin
Tianjin China
HS Code
732690
Production Capacity
10000 PCS/Day
Product Description
| XM01 (8mm micro perforeated clamp) | ||||||||
| Size | ItemNO | / | / | |||||
| SAE no | mm | inch | W1 | W2 | W4 | W5 | pcs/bag | pcs/carton |
| 4 | 6-16 | 0.25"-0.62" | XM01A4 | XM01B4 | XM01D4 | XM01E4 | 100 | 2500 |
| 6 | 11-20 | 0.44"-0.78" | XM01A6 | XM01B6 | XM01D6 | XM01E6 | 100 | 2500 |
| 8 | 13-23 | 0.5"-0.91" | XM01A8 | XM01B8 | XM01D8 | XM01E8 | 100 | 1000 |
| 10 | 14-27 | 0.56"-1.06" | XM01A10 | XM01B10 | XM01D10 | XM01E10 | 100 | 1000 |
| 12 | 18-32 | 0.69"-1.25" | XM01A12 | XM01B12 | XM01D12 | XM01E12 | 50 | 1000 |
| Material | Band | Housing | Screw | suggested install torque |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | 2.1Nm |
| W2 | AISI 203SS/201SS/301SS | AISI 203SS/201SS/301SS | Zinc plated steel | |
| W2B | AISI 201SS | Zinc plated steel | Zinc plated steel | |
| W4 | AISI 201SS/301SS/304SS | AISI 201SS/301SS/304SS | AISI 201SS/301SS/304SS | |
| W5 | AISI 316SS | AISI 316SS | AISI 316SS |
