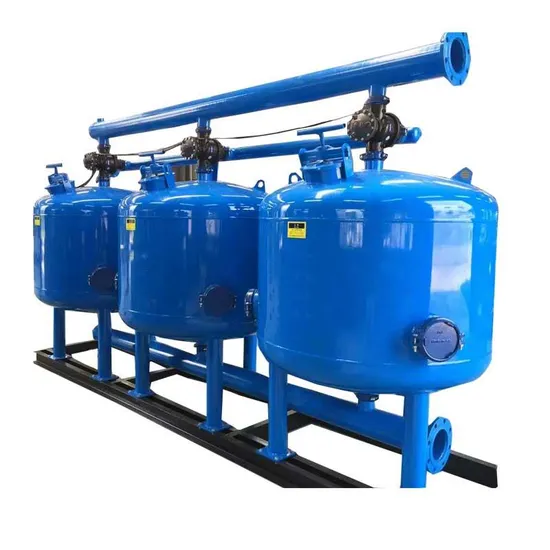

800 mm Automatic Self-Cleaning Sand Media Filter for Water Treatment and Irrigation

Product Description

Product Description
Sand media filter
PRODUCT DESCRIPTION

Type:	Other Watering & Irrigation	Place of Origin:	Fujian, China
Brand Name:	ARKA	Model Number:	F32-2
Material:	Carbon steel	Size:	1720*800*1620mm
Product name:	Sand filter	Usage:	Agriculture irrigation
Function:	filtration water treatment	Filter Type:	Sand Filter

Model	Connections (FLANGE)	Sand Tank Diameter (mm)	Max Flow (m3/h)	Max Pressure (bar)	Filtering Surface (m2)	G.W. (kg)
F63TD-L	4"	800	25	10	1-1.5	300

TYPICAL APPLICATION

working principle

The Filtering Process
Filtering with media filters, also known as depth filtration, is done by filtering water through a thick layer of graded particles, called the filter bed.
These particles can be sand, gravel or other granular materials. The filtration degree depends on the effective size of the bedding and the water
velocity through the filter.
Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media
particles. Clean water flows through the filtration nozzles (3) and out of the filter via the outlet valve (4).
The gradual dirt buildup in the filter bed causes an increase in the pressure differential across the filter and when it reaches its maximum design
value, a cleaning process should be performed. In automatic media filter installations a pressure differential switch senses the pressure differential
and when it reaches a preset value, the self cleaning process begins.
The Cleaning Process
Cleaning is done by backwashing; pressurized water flows in reverse direction - from the nozzles upwards, causing suspension of the filter bed,
thus releasing the suspended matter from the bedding. The dirt particles are then washed out of the filter through the back-flush valve. In automatic
media filters installations the cleaning process is done by the system's controller. When the pressure differential switch senses that the differential
pressure across the system reached a pre-set value, a signal is sent to the flushing controller and the self cleaning process begins.
SUPPLY ABILITY: 500 pieces per month

PACKING&DELIVERY

Packaging Details:	Corrugated Paper Plus Plastic Film
Port:	Fuzhou

FEATURE & ADVANTAGE
1.Manufactured in polypropylene
2.Resistance to hemical products, wear-resistant
3.Clamp design can be easily removed filter cleaning
4.Micron filtration precision, can easily filter impurities in water
5.Different interface sizes and traffic can meet different scenarios and customer requirements.

OUR SERVICE
1. OEM/ODM services are accepted.
2. Technical support and design personalized solutions by the engineer team.
3. Accept sample order.
4.Quality tracking & service.
5.Provide the free catalog for you.
6.Various irrigation products for your choice.
7.Warranty: 1 year warranty from the shipping date.

FAQ
Q1. Are you manufacturer or trade company? We are a manufacturer specialized in Agriculture Watering Irrigation for more than 16 years.
Q2.Where's your factory located?
Our factory locates on Fuzhou, Fujian Province. 1.5-hours by plane or 6-hour distance by trainaway from Guangzhou.
Q3. Can you offer the sample?
We can offer samples for testing.
Q4. How long can I expect to get the sample?
Usually it will takes 5-7 working days.
Q5. What is your MOQ? Our MOQ usually is 100-500 pcs, If you have the special request, let's discuss it.
Q6. What's your delivery time?
The delivery time about 15-25 days.
COMPANY PROFILE
* Founded in 2008, located in Fuzhou, china
* A Professinal Environmental equipment manufacturer.
*Strong capacity in supplying chain managerment, integrated production and manufacturing.
*Unique innovation in the development and design of water recycling system control integration.
*We have passed the ISO9001 quality system certificate and CE certificate.
*The world's leading water saving technology & High cost performance
