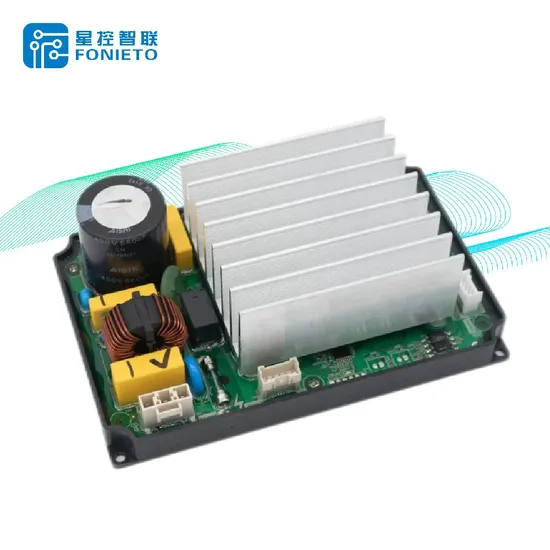

Reliable OEM Power Supply PCBA for Multimedia Devices
| US$0.01 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FONIETO-1
Layers
1-22 Layers
Base Material
FR-4
Certification
RoHS, CCC, ISO, Ts16949
Customized
Customized
Condition
New
Solder Resist Color
Green;Red;Yellow;Black;White
Order Qty
No Limited
Shape
Retangular, Round, Slots, Cutouts, Complex, Irreg
Surface Finished
HASL, Gold Finger, OSP, Enig, Peelable Mask
Transport Package
Inner Vacuum Packing Outer Carton Box
Specification
FR 4, 0.8mm, 1 Layer, 1OZ Copper Thickness
Trademark
OEM, ODM
Origin
China
HS Code
8534009000
Production Capacity
100000pieces/Year
Product Description
| PCB Item | Standard | Advanced |
| Layer Counts: | 1L--10L, HDI | 10L-18L,HDI |
| Base Material: | CAM1,FR4,F4BK,Arlon,Rogers | |
| Material Suppliers: | GUOJI(GDM), KINGBOARD(KB), SHENGYI,Arlon | |
| Material Thickness(mm): | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 | |
| Max board size(mm): | 1200x400mm | 1200x500mm |
| Board Outline Tolerance: | ±0.15mm | ±0.01mm |
| Board Thickness: | 0.4mm--3.2mm | 0.3mm----3.2mm |
| Thickness Tolerance: | ±8% | ±5% |
| Minimum line/space: | 0.1mm | |
| Mini Hole Size(mechanical): | 0.2mm | |
| Innerlayer Copper Weight: | 0.1mm | |
| Innerlayer Copper Weight: | 17um--105um | |
| Outlayer Copper Weight: | 17um--105um | |
| Mini Solder Mask Bridge: | 0.05mm | |
| Impedance Control Tolerance: | ±10% | |
| Contours: | Scored, Routed, Punched | |
| Surface Finishing: | HAL,lead-free HAL,ENIG,Plated Gold,Immersion Silver,OSP | |
| 1--2L Lead Time: | 3-7 days | |
| 4--18L Lead Time: | 7-15 days | |
| Acceptable File Format: | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 | |
| Quality Standards: | IPC-A-600H Class2 | |
| Certificate: | ISO9001:2008,PCB Assembly Capability | |
