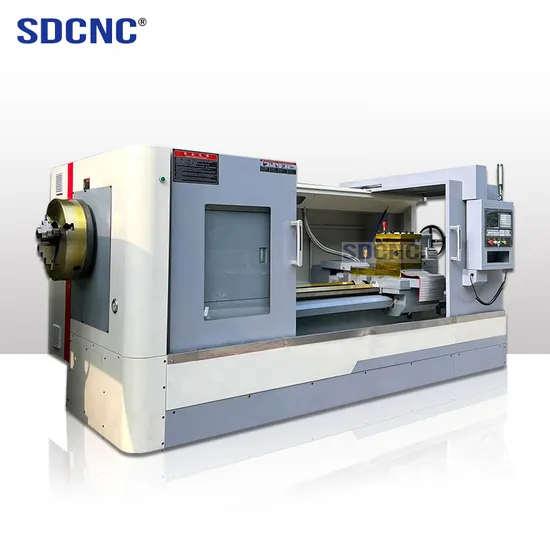

Fully Automatic Threading Machine Qk1320 CNC Pipe Threading Lathe Machine

Product Description

Optional Configuration
1. Fanuc or other brand CNC controller
2. Quick change tool post
3. Hydraulic turret or Power turret
4. Pneumatic chuck
5. Hydraulic tailstock
6. Pneumatic position limiter
7. Tool setting arm
8. Full-shield1.

Product Parameters

Item		Unit	QK1320
			Manual	HYD
Capacity	Swing over bed	mm	630/800
	Swing over cross slide	mm	340/520
	Distance between centers	mm	1000-6000
	Guideway width	mm	50-220
	Max. load capacity	mm	550
	Spindle bore	T	3
Spindle	Spindle bore taper	mm	200
	Spindle nose type	-	VF.4 steps	HYD 4 steps
	Spindle speed range	rpm	20-600
	Chuck	mm	Φ500 4-jaw manual
Turret	Turret/tool post	-	NC turret 4 position
	Tool shank size	mm	32×32
Feed	X axis travel	mm	320/420
	Z axis travel	mm	1000-6000
	X axis rapid traverse	mm/min	4000
	Z axis rapid traverse	mm/min	6000
Tailstock	Tailstock quill diameter	mm	Φ100
	Tailstock quill taper	-	MT5/MT6
	Tailstock quill travel	mm	250
Motor	Main spindle motor	kW	11
	Coolant pump motor	kW	0.25
Dimension	Width×Height	mm	1880×1850
	Length	mm	3300-8300
Weight	Net weight	T	4.5

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tool
